| Last Modified: 4-30-2014 | 6.6 L | Doc ID: RM0000019YN000X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: PARK ASSIST / MONITORING: NIGHT VIEW SYSTEM: PRECAUTION; 2006 MY LX470 [05/2005 - ] | ||
PRECAUTION
NOTICE:
When disconnecting the cable from the negative (-) battery terminal, initialize the following system(s) after the cable is reconnected.
|
System Name |
See procedure |
|---|---|
|
Meter / Gauge System |
|
|
Variable Gear Ratio Steering System |
![2006 MY LX470 [05/2005 - ]; INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION](../../../../stylegraphics/info.gif "2006 MY LX470 [05/2005 - ]; INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION")
1. PRECAUTIONS FOR NIGHT VIEW SYSTEM
(a) The night view projectors emit near-infrared light, which are invisible to the naked eye. Therefore, when the night view projectors are on, avoid looking directly into them (more than 5 minutes). The light energy emitted is almost equal to looking directly into the high beams.
HINT:

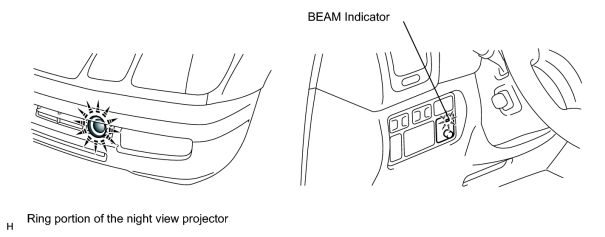

When the night view projectors are on, the BEAM indicator light on the night view switch and the outer circumference of the projectors are illuminated.
|
|
