INSTALLATION

1. INSTALL HYDRAULIC BRAKE BOOSTER ASSEMBLY

(a) Install a new gasket and the booster with the 4 nuts.

Torque:

15 N·m {155 kgf·cm, 11ft·lbf}

(b) Install the clevis pin with the clip.

(c) Using SST, connect the 4 brake lines. SST: 09023-00101 Torque: 15 N·m {155 kgf·cm, 11ft·lbf} without SST 14 N·m {143 kgf·cm, 10ft·lbf} with SST HINT: Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

(d) Connect the 5 connectors.

2. INSTALL CHARCOAL CANISTER SUB-ASSEMBLY

3. INSTALL SKID CONTROL ECU ASSEMBLY

(a) Install the skid control ECU with the 2 nuts.

Torque:

5.0 N·m {51 kgf·cm, 44in·lbf}

4. INSTALL NO. 2 HEATER TO REGISTER DUCT

5. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER LH

6. INSTALL NO. 1 INSTRUMENT PANEL LOWER PANEL

7. INSTALL COWL SIDE TRIM BOARD LH

8. INSTALL FRONT DOOR SCUFF PLATE LH

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

10. FILL RESERVOIR WITH BRAKE FLUID

11. BLEED AIR FROM HYDRAULIC BRAKE BOOSTER

(a) Procedures when using intelligent tester .

(b) Procedures when using ABS actuator checker .

12. BLEED AIR FROM BRAKE LINE

13. CHECK BRAKE FLUID LEVEL IN RESERVOIR

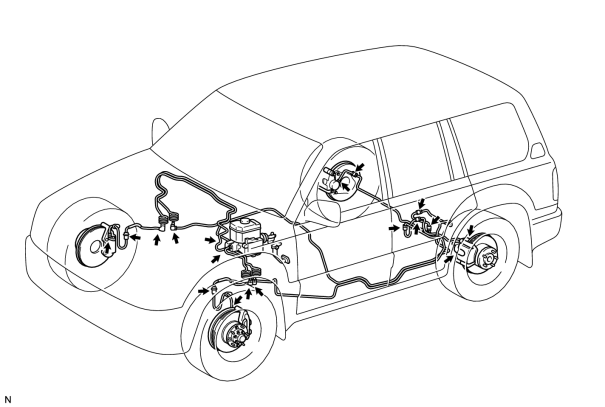

14. CHECK FOR BRAKE FLUID LEAKAGE

(a) Check for brake fluid leakage.

15. CHECK HYDRAULIC BRAKE BOOSTER ASSEMBLY

(a) Check the hydraulic brake booster .

16. PERFORM INITIALIZATION

(a) Perform initialization .

NOTICE:

Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
