| Last Modified: 4-30-2014 | 6.6 C | Doc ID: RM000001A5H002X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C0226/21,C0236/22,C0246/23,C0256/24; SFR Solenoid Circuit; 2006 MY LX470 [05/2005 - ] | ||
|
DTC |
C0226/21 |
SFR Solenoid Circuit |
|
DTC |
C0236/22 |
SFL Solenoid Circuit |
|
DTC |
C0246/23 |
SRR Solenoid Circuit |
|
DTC |
C0256/24 |
SRL Solenoid Circuit |
DESCRIPTION
This solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.
|
DTC No. |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
C0226/21 |
Open or short in SFRH or SFRR circuit continues for 0.015 sec. or more. |
|
|
C0236/22 |
Open or short in SFRH or SFRR circuit continues for 0.015 sec. or more. |
|
|
C0246/23 |
Open or short in SFRH or SFRR circuit continues for 0.015 sec. or more. |
|
|
C0256/24 |
Open or short in SFRH or SFRR circuit continues for 0.015 sec. or more. |
|

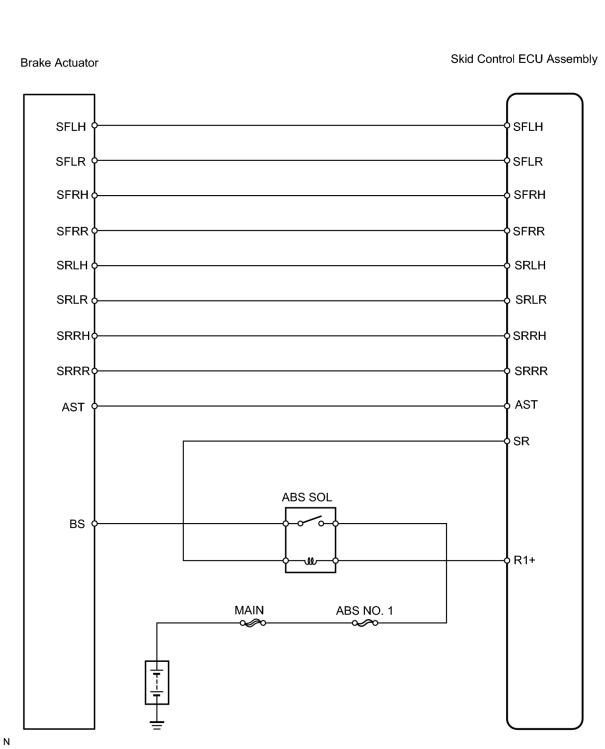

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT BRAKE ACTUATOR SOLENOID |

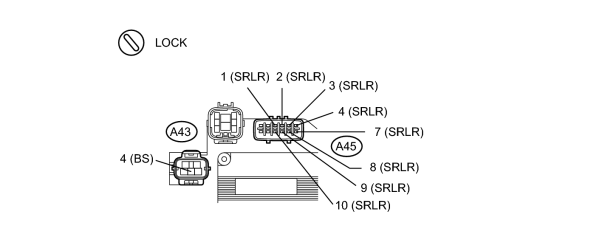

(a) Disconnect the A43 and A45 actuator connectors.
(b) Measure the resistance of the actuator.
Standard resistance:
|
Tester Connection |
Specified Condition |
|---|---|
|
A43-4 (BS) - A45-1 (SRRR) |
2.00 to 2.40 Ω |
|
A43-4 (BS) - A45-2 (SRRH) |
6.95 to 7.45 Ω |
|
A43-4 (BS) - A45-3 (SRLR) |
2.00 to 2.40 Ω |
|
A43-4 (BS) - A45-4 (SRLH) |
6.95 to 7.45 Ω |
|
A43-4 (BS) - A45-7 (SFLR) |
2.00 to 2.40 Ω |
|
A43-4 (BS) - A45-8 (SFLH) |
6.95 to 7.45 Ω |
|
A43-4 (BS) - A45-1 (SFRR) |
2.00 to 2.40 Ω |
|
A43-4 (BS) - A45-1 (SFRH) |
6.95 to 7.45 Ω |
HINT:
Resistance of each solenoid at 20°C (68°F).
| NG |
|
|
|
2. |
CHECK WIRE HARNESS (SKID CONTROL ECU ASSEMBLY - BRAKE ACTUATOR) |
| NG |
|
| OK |
|
CHECK EACH CONNECTION IF SAME CODE IS STILL OUTPUT AFTER DTC DELETION (IF CONNECTION IS NORMAL, SKID CONTROL ECU MAY BE DEFECTIVE) |
|
|
