| Last Modified: 4-30-2014 | 6.6 U | Doc ID: RM000001BHZ001X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: TERMINALS OF ECU; 2006 MY LX470 [05/2005 - ] | ||
TERMINALS OF ECU

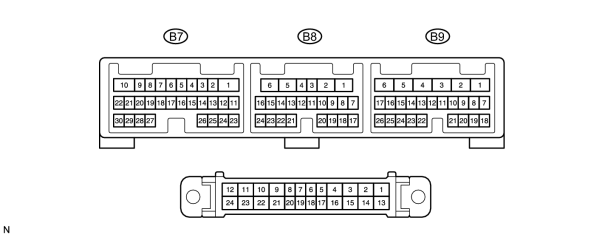

1. CHECK BODY ECU (MAIN)
|
Symbols (Terminal No.) |
Wiring Color |
Condition |
Specified Condition |
|---|---|---|---|
|
PRG (B8-3) - GND1 (4) |
V - Body ground |
Key inserted in ignition key cylinder → As key pulled out of ignition key cylinder |
11 to 14 V → Pulse generation → 11 to 14 V |
|
PRG (B8-3) - GND2 (16) |
V - Body ground |
Key inserted in ignition key cylinder → As key pulled out of ignition key cylinder |
11 to 14 V → Pulse generation → 11 to 14 V |
|
RDA (B8-4) - GND1 (4) |
L - Body ground |
Ignition switch OFF, all doors closed and transmitter switch not pressed |
11 to 14 V |
|
Ignition switch OFF, all doors closed and transmitter switch pressed |
Pulse generation |
||
|
RDA (B8-4) - GND2 (16) |
L - Body ground |
Ignition switch OFF, all doors closed and transmitter switch not pressed |
11 to 14 V |
|
Ignition switch OFF, all doors closed and transmitter switch pressed |
Pulse generation |
|
|
