Last Modified: 4-30-2014 6.6 G Doc ID: RM000001BJL003X
Model Year: 2006 Model: LX470 Prod Date Range: [05/2005 -           ]
Title: WIPER AND WASHER: WASHER NOZZLE: INSPECTION; 2006 MY LX470 [05/2005 -        ]

INSPECTION

1. CHECK WINDSHIELD WASHER NOZZLE

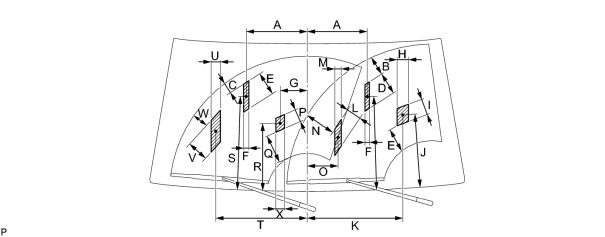

(a) While operating the washer, check if the point where the washer fluid hits the windshield is within the range indicated by the hatched line.

Standard Measurement:

Area

Measurement

A

Approx. 311 mm (12.24 in.)

B

Approx. 110 mm (4.33 in.)

C

Approx. 86 mm (3.39 in.)

D

Approx. 116 mm (4.57 in.)

E

Approx. 205 mm (8.07 in.)

F

Approx. 22 mm (0.87 in.)

G

Approx. 138 mm (5.43 in.)

H

Approx. 60 mm (2.36 in.)

I

Approx. 85 mm (3.35 in.)

J

Approx. 364 mm (14.33 in.)

K

Approx. 496 mm (19.53 in.)

L

Approx. 81 mm (3.19 in.)

M

Approx. 35 mm (1.38 in.)

N

Approx. 157 mm (6.18 in.)

O

Approx. 159 mm (6.26 in.)

P

Approx. 63 mm (2.48 in.)

Q

Approx. 169 mm (6.65 in.)

R

Approx. 331 mm (13.03 in.)

S

Approx. 465 mm (18.31 in.)

T

Approx. 468 mm (18.43 in.)

U

Approx. 45 mm (1.77 in.)

V

Approx. 104 mm (4.09 in.)

W

Approx. 119 mm (4.69 in.)

X

Approx. 44 mm (1.73 in.)

2. CHECK REAR WASHER NOZZLE

While operating the washer, check if the point where the washer fluid hits the back door glass is within the range indicated in the illustration.

Standard Measurement:

Area

Measurement

A

Approx. 40 mm (1.57 in.)

B

Approx. 180 mm (7.09 in.)

C

Approx. 40 mm (1.57 in.)

D

Approx. 30 mm (1.18 in.)

E

Approx. 120 mm (4.72 in.)

F

Approx. 90 mm (3.54 in.)

G

Approx. 15 mm (0.59 in.)
