| Last Modified: 4-30-2014 | 6.6 U | Doc ID: RM000001BTW001X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: TERMINALS OF ECU; 2006 MY LX470 [05/2005 - ] | ||
TERMINALS OF ECU

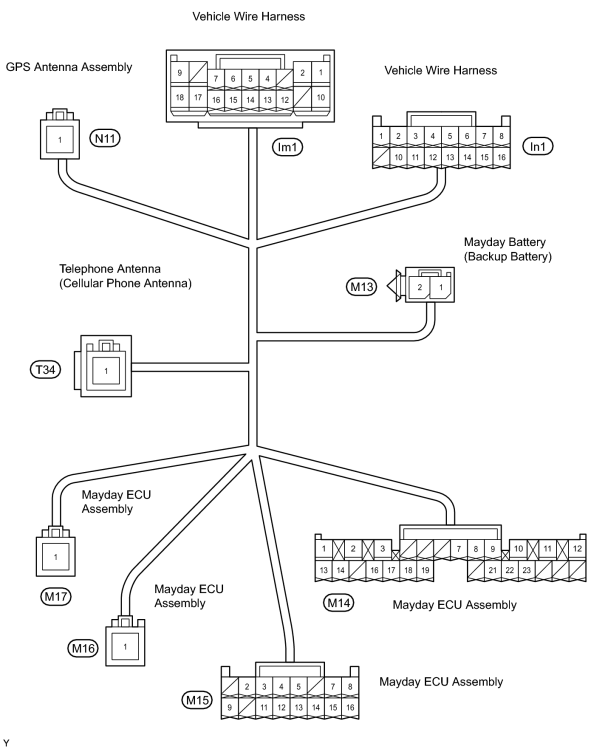

1. CONNECTORS

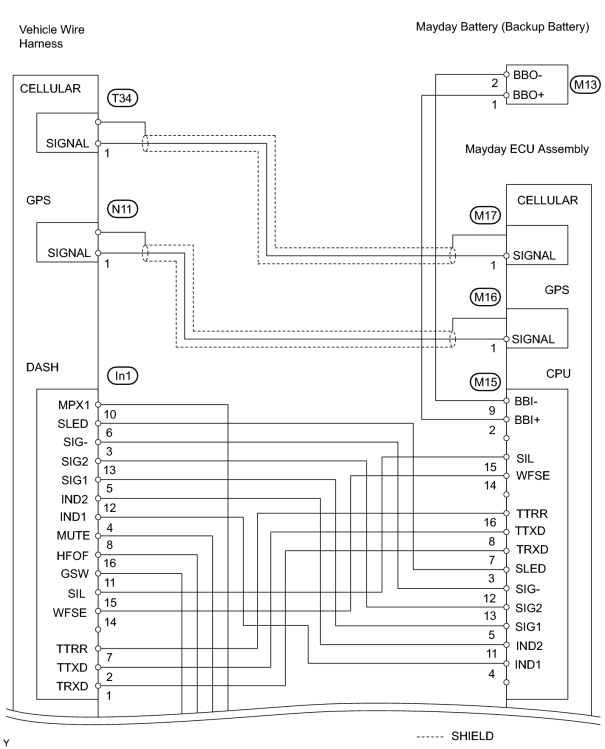

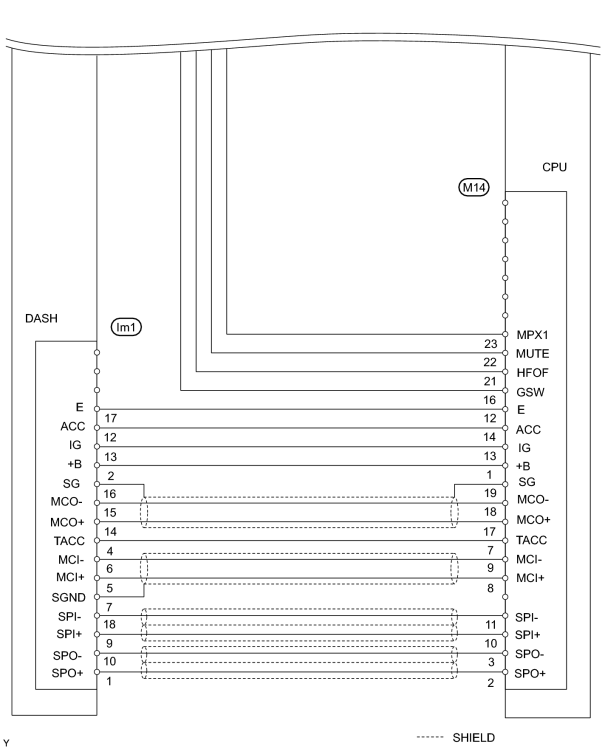

2. WIRING DIAGRAMS
|
|
