DIAGNOSIS SYSTEM
1. LIST OF OPERATION METHODS

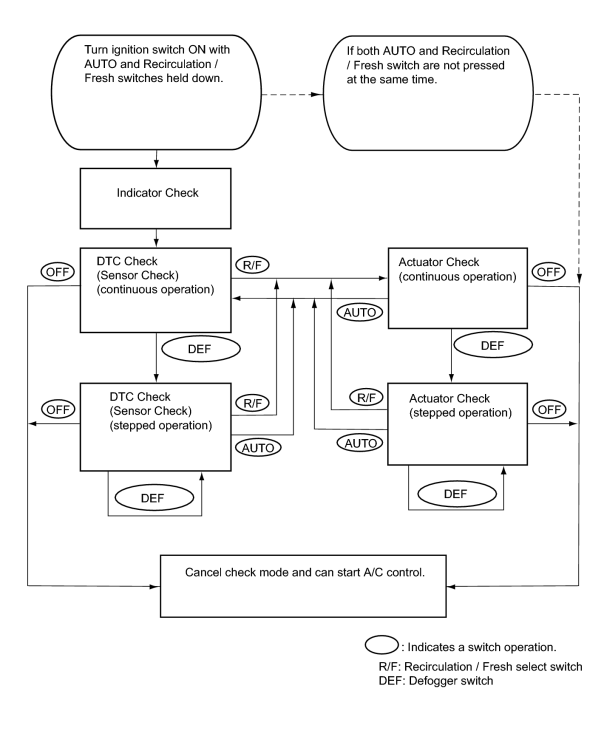

(a) By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnosis check mode.
2. CHECK DLC3
|
(a) The ECM uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.
|
|
|
|
