TS and CG Terminal Circuit |
DESCRIPTION
By connecting terminals TS and CG of the DLC3, an input signal check can be performed
![2006 MY LX470 [05/2005 - ]; SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: DIAGNOSIS SYSTEM](../../../../stylegraphics/info.gif "2006 MY LX470 [05/2005 - ]; SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: DIAGNOSIS SYSTEM")
.

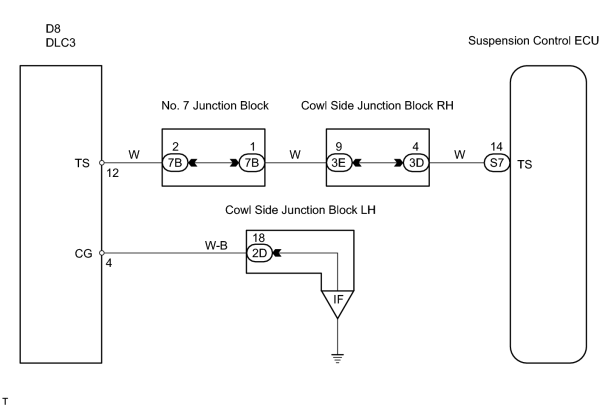

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT DLC3 (TS VOLTAGE) |
|
(a) Turn the ignition switch ON. |
|
(b) Measure the voltage between terminals 12 (TS) and 4 (CG) of the DLC3.
Standard voltage:
9 to 14 V
| OK |
|
|
|
2. |
CHECK WIRE HARNESS (SUSPENSION CONTROL ECU - DLC3 AND BODY GROUND) |
| NG |
|
| OK |
|
|
|
