| Last Modified: 4-30-2014 | 6.6 R | Doc ID: RM000001DT3000X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: PARTS LOCATION; 2006 MY LX470 [05/2005 - ] | ||
PARTS LOCATION

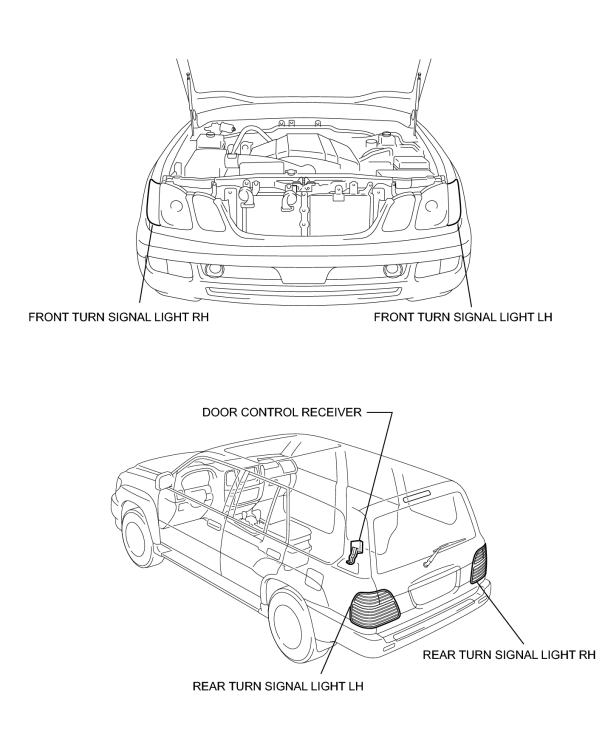

ILLUSTRATION

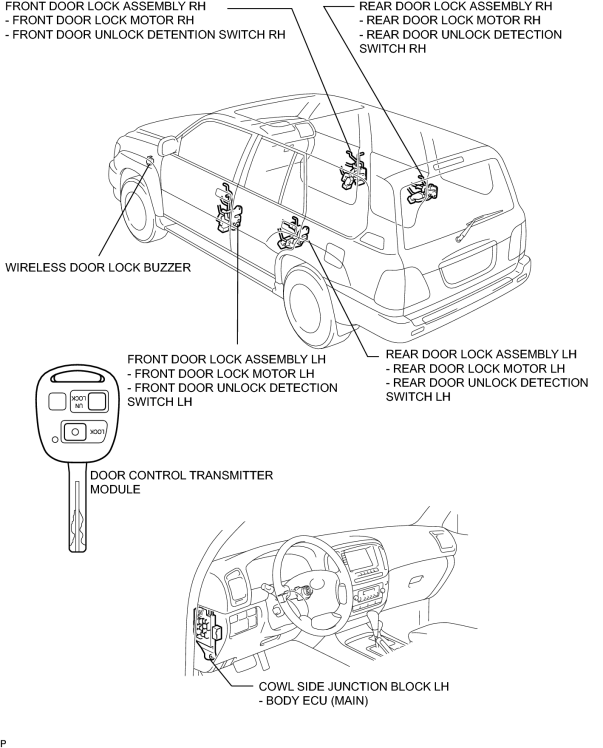

ILLUSTRATION
|
|
