| Last Modified: 4-30-2014 | 6.6 K | Doc ID: RM000001E2U000X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: SEAT: REAR NO. 2 SEAT ASSEMBLY: COMPONENTS; 2006 MY LX470 [05/2005 - ] | ||
COMPONENTS

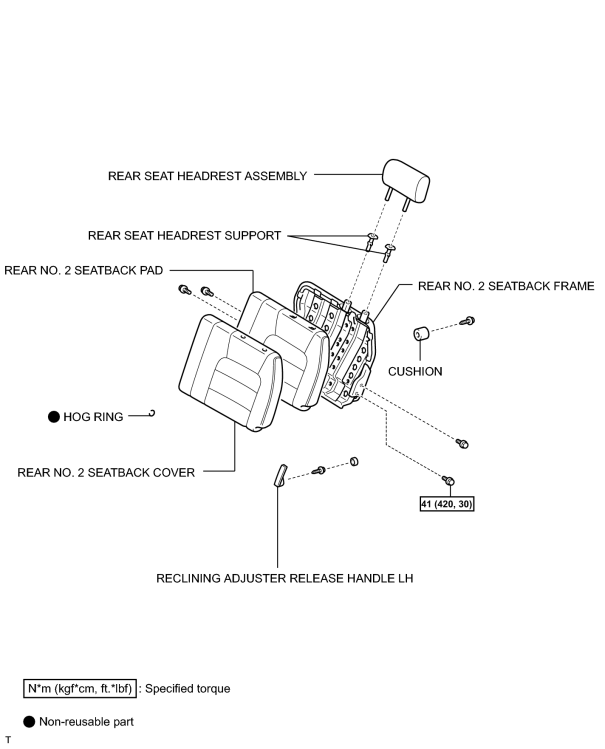

ILLUSTRATION

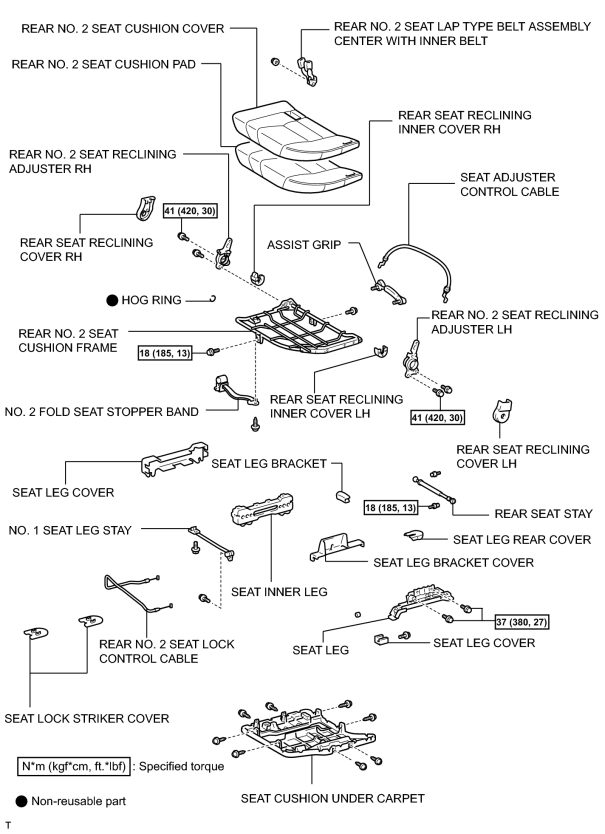

ILLUSTRATION
|
|
