2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2118; Throttle Actuator Control Motor Current Range / Performance; 2007 MY LX470 [08/2006

Last Modified: 7-3-2017	6.8:8.0.40	Doc ID: RM000000PFW02TX
Model Year Start: 2007	Model: LX470	Prod Date Range: [08/2006 - ]
Title: 2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2118; Throttle Actuator Control Motor Current Range / Performance; 2007 MY LX470 [08/2006 - ]

DTC

P2118

Throttle Actuator Control Motor Current Range / Performance

DESCRIPTION

The Electronic Throttle Control System (ETCS) has a dedicated power supply circuit. The voltage (+BM) is monitored and when the voltage is low (less than 4 V), the ECM concludes that the ETCS has a fault and current to the throttle actuator is cut.

When the voltage becomes unstable, the ETCS itself becomes unstable. For this reason, when the voltage is low, the current to the throttle actuator is cut. If repairs are made and the system has returned to normal, turn the ignition switch OFF. The ECM then allows current to flow to the throttle actuator so that the engine can be restarted.

HINT:

The ETCS does not use a throttle cable.

DTC No.

DTC Detection Condition

Trouble Area

P2118

Open in ETCS power source (+BM) circuit

(1 trip detection logic)

Open in ETCS power source circuit

ETCS fuse

MONITOR DESCRIPTION

The ECM monitors the battery supply voltage applied to throttle actuator.

When the power supply voltage (+BM) drops below 4 V for 0.8 seconds or more, the ECM interprets this as an open in the power supply circuit (+BM). The ECM illuminates the MIL and sets a DTC.

This monitor runs for 5 seconds (the first 5 seconds of engine idle) after the engine is started.

MONITOR STRATEGY

Related DTCs	P2118: Throttle actuator power supply
Required Sensors/Components (Main)	Throttle actuator, throttle valve, ETCS fuse
Required Sensors/Components (Related)	None
Frequency of Operation	Continuous
Duration	0.8 seconds
MIL Operation	Immediate
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

Monitor will run whenever these DTCs are not present	None
Battery voltage	8 V or more

TYPICAL MALFUNCTION THRESHOLDS

Throttle actuator power supply voltage (+BM)

Less than 4 V

COMPONENT OPERATING RANGE

Throttle actuator power supply voltage

9 to 14 V

FAIL-SAFE

When any of these DTCs, as well as other DTCs relating to Electronic Throttle Control System (ETCS) malfunctions, are set, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator off, and the throttle valve is returned to a 7°throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue at a minimal speed.

If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned OFF.

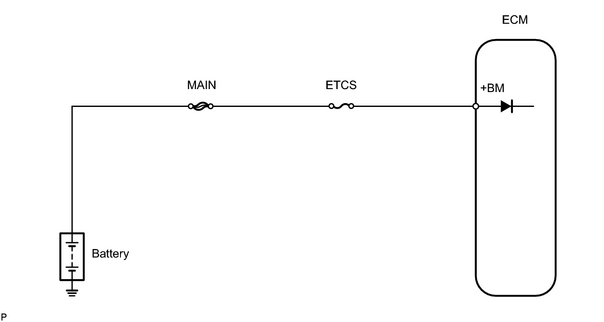

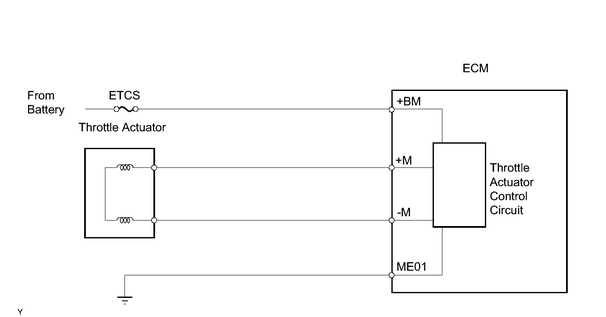

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.	INSPECT FUSE (ETCS)

(a) Remove the ETCS fuse from the engine room junction block.

(b) Measure the resistance of the ETCS fuse.

Standard resistance:

Below 1 Ω

CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE

2.	READ VALUE USING INTELLIGENT TESTER (+BM VOLTAGE)

(a) Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.

(b) Turn the ignition switch ON.

Standard voltage:

9 to 14 V

CHECK FOR INTERMITTENT PROBLEM

3.	CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE, ETCS FUSE - BATTERY)

(a) Check harness and connector .

REPAIR OR REPLACE HARNESS OR CONNECTOR

REPLACE ECM
