2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0455,P0456; Evaporative Emission Control System Leak Detected (Gross Leak); 2007 MY LX470 [08/2006

Last Modified: 7-3-2017	6.8:8.0.40	Doc ID: RM000000SWH01MX
Model Year Start: 2007	Model: LX470	Prod Date Range: [08/2006 - ]
Title: 2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0455,P0456; Evaporative Emission Control System Leak Detected (Gross Leak); 2007 MY LX470 [08/2006 - ]

DTC

P0455

Evaporative Emission Control System Leak Detected (Gross Leak)

DTC

P0456

Evaporative Emission Control System Leak Detected (Very Small Leak)

DTC SUMMARY

DTC No.

Monitoring Item

Malfunction Detection Condition

Trouble Area

Detection Timing

Detection Logic

P0455

EVAP gross leak

Leak detection pump creates negative pressure (vacuum) in EVAP system and EVAP system pressure measured. Reference pressure measured at start and at end of leak check.

If stabilized pressure higher than [second reference pressure x 0.2], ECM determines that EVAP system has large leak.

Fuel cap (loose)
Leakage from EVAP line (canister - fuel tank)
Leakage from EVAP line (purge VSV - canister)
Canister pump module
Leakage from fuel tank
Leakage from canister

While ignition switch OFF

2 trip

P0456

EVAP small leak

Leak detection pump creates negative pressure (vacuum) in EVAP system and EVAP system pressure measured. Reference pressure measured at start and at end of leak check.

If stabilized pressure higher than second reference pressure, ECM determines that EVAP system has small leak.

Fuel cap (loose)
Leakage from EVAP line (canister - fuel tank)
Leakage from EVAP line (purge VSV - canister)
Canister pump module
Leakage from fuel tank
Leakage from canister

While ignition switch OFF

2 trip

DESCRIPTION

The circuit description can be found in the Evaporative Emission (EVAP) system .

INSPECTION PROCEDURE

Refer to the EVAP system .

MONITOR DESCRIPTION

5 hours* after the ignition switch is turned OFF, the leak detection pump creates negative pressure (vacuum) in the EVAP system. The ECM monitors for leaks and actuator malfunctions based on the EVAP pressure.

HINT:

*: If the engine coolant temperature is not below 35°C (95°F) 5 hours after the ignition switch is turned OFF, the monitor check starts 2 hours later. If it is still not below 35°C (95°F) 7 hours after the ignition switch is turned OFF, the monitor check starts 2.5 hours later.

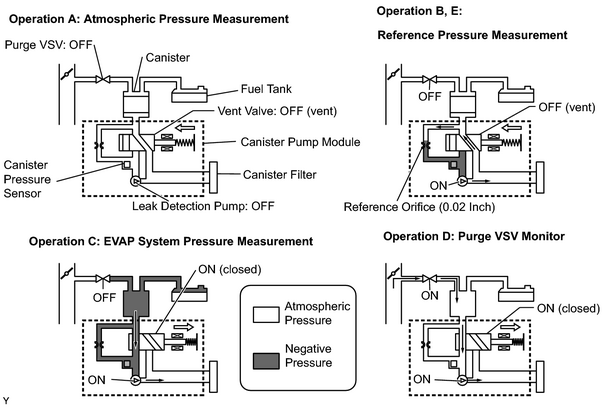

Sequence	Operation	Description	Duration
-	ECM activation	Activated by soak timer 5, 7 or 9.5 hours after ignition switch OFF.	-
A	Atmospheric pressure measurement	Vent valve turned OFF (vent) and EVAP system pressure measured by ECM in order to register atmospheric pressure. If pressure in EVAP system not between 76 kPa-a and 110 kPa-a (570 mmHg-a and 825 mmHg-a), ECM cancels EVAP system monitor.	10 seconds
B	First reference pressure measurement	In order to determine reference pressure, leak detection pump creates negative pressure (vacuum) through reference orifice and then ECM checks if leak detection pump and vent valve operate normally.	60 seconds
C	EVAP system pressure measurement	Vent valve turned ON (closed) to shut EVAP system. Negative pressure (vacuum) created in EVAP system, and EVAP system pressure then measured. Write down measured value as it will be used in leak check. If EVAP pressure does not stabilize within 15 minutes, ECM cancels EVAP system monitor.	15 minutes*
D	Purge VSV monitor	Purge VSV opened and then EVAP system pressure measured by ECM. Large increase indicates normal.	10 seconds
E	Second reference pressure measurement	After second reference pressure measurement, leak check performed by comparing first and second reference pressure. If stabilized system pressure higher than second reference pressure, ECM determines that EVAP system leaking.	60 seconds
F	Final check	Atmospheric pressure measured and then monitoring result recorded by ECM.	-

*: If only a small amount of fuel is in the fuel tank, it takes longer for the EVAP pressure to stabilize.

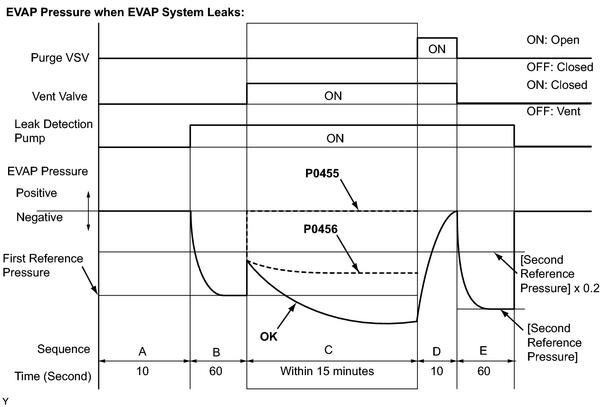

P0455: EVAP gross leak
In operation C, the leak detection pump creates negative pressure (vacuum) in the EVAP system and the EVAP system pressure is measured. If the stabilized system pressure is higher than [second reference pressure x 0.2] (near atmospheric pressure), the ECM determines that the EVAP system has a large leakage, illuminates the MIL and sets the DTC (2 trip detection logic).
P0456: EVAP very small leak
In operation C, the leak detection pump creates negative pressure (vacuum) in the EVAP system and the EVAP system pressure is measured. If the stabilized system pressure is higher than the second reference pressure, the ECM determines that the EVAP system has a small leakage, illuminates the MIL and sets the DTC (2 trip detection logic).

MONITOR STRATEGY

Required Sensors/Components	Purge VSV and canister pump module
Frequency of Operation	Once per driving cycle
Duration	Within 15 minutes (varies with amount of fuel in tank)
MIL Operation	2 driving cycles
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

Enable conditions of EVAP key-OFF monitor
P043E (Reference orifice - low flow) P043F (Reference orifice - high flow) P0441 (Purge VSV - stuck open) P0441 (Purge VSV - stuck close) P0451 (Canister pressure sensor - noise) P0455 (EVAP gross leak) P0456 (EVAP small leak) P2401 (Leak detection pump - stuck OFF) P2402 (Leak detection pump - stuck ON) P2419 (Vent valve - stuck ON) P2420 (Vent valve - stuck OFF)
Atmospheric pressure	70 to 110 kPa-a (525 to 825 mmHg-a)
Battery voltage	10.5 V or higher
Vehicle speed	Less than 2.5 mph (4 km/h)
Ignition switch	OFF
Time after key off	5 or 7 or 9.5 hours
Canister pressure sensor malfunction (P0450, P0452, P0453)	Not detected
Purge VSV	Not operated by scan tool
Vent valve	Not operated by scan tool
Leak detection pump	Not operated by scan tool
Both of the following conditions 1 and 2 are met before key off	-
1. Duration that vehicle has been driven	5 minutes or more
2. EVAP purge operation	Performed
ECT	4.4 to 35°C (40 to 95°F)
IAT	4.4 to 35°C (40 to 95°F)

1. Key-off monitor sequence 1 to 8

1. Atmospheric pressure measurement

Next sequence is run if the following condition is met	-
Atmospheric pressure change	Less than 0.3 kPa-g (2.25 mmHg-g) in 1 second

2. First reference pressure measurement

Next sequence is run if the following conditions are met	-
EVAP pressure just after reference pressure measurement start	-1 kPa-g (-7.5 mmHg-g) or less
Reference pressure	-4.85 to -1.057 kPa-g (-36.4 to -7.93 mmHg-g)
Reference pressure	Saturated within 60 seconds

3. Vent valve stuck closed check

Next sequence is run if the following condition is met	-
EVAP pressure change after vent valve is ON	0.3 kPa-g (2.25 mmHg-g) or more

4. Vacuum introduction

Next sequence is run if the following condition is met	-
EVAP pressure	Saturated within 15 minutes

5. Purge VSV stuck closed check

Next sequence is run if the following condition is met	-
EVAP pressure change after purge valve is open	0.3 kPa-g (2.25 mmHg-g) or more

6. Second reference pressure measurement

Next sequence is run if the following conditions are met	-
EVAP pressure just after reference pressure measurement start	-1 kPa-g (-7.5 mmHg-g) or lower
Reference pressure	-4.85 to -1.057 kPa-g (-36.4 to -7.93 mmHg-g)
Reference pressure	Saturated within 60 seconds
Difference between first reference pressure and second reference pressure	Less than 0.7 kPa-g (5.25 mmHg-g)

7. Leak check

Next sequence is run if the following condition is met	-
EVAP pressure when vacuum introduction is complete	Second reference pressure or lower

8. Atmospheric pressure measurement

EVAP monitor is complete if the following condition is met	-
Atmospheric pressure difference between sequence 1 and 8	Within 0.3 kPa-g (2.25 mmHg-g)

TYPICAL MALFUNCTION THRESHOLDS

P0455: EVAP gross leak

FTP when vacuum introduction complete

Reference pressure x 0.2 or higher

P0456: EVAP small leak

FTP when vacuum introduction complete

Between "reference pressure" and "reference pressure x 0.2"

MONITOR RESULT

Refer to detailed information on MONITOR RESULT .
