Last Modified:
7-3-2017
6.8:8.0.40
Doc ID:
RM000000SXR00QX
Model Year Start:
2007
Model:
LX470
Prod Date Range:
[08/2006 - ]
Title:
2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM; 2007 MY LX470 [08/2006 - ]

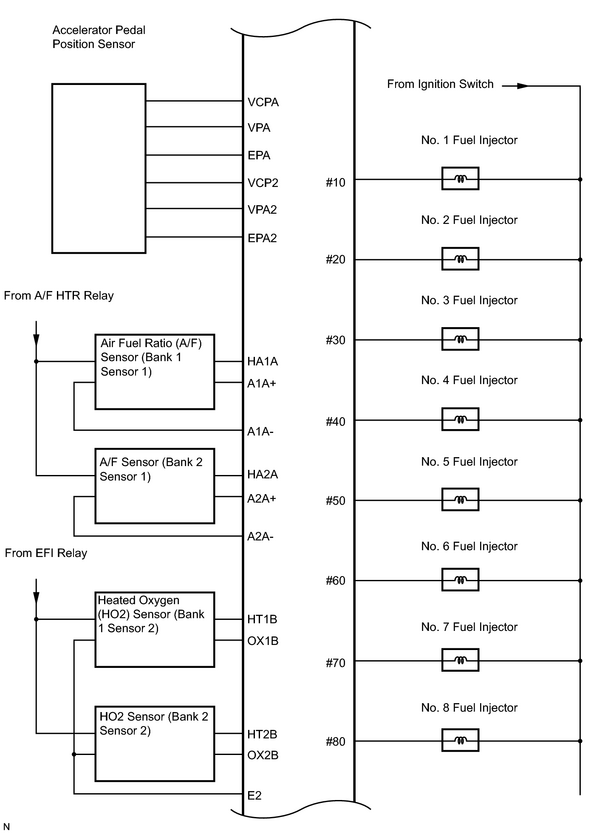

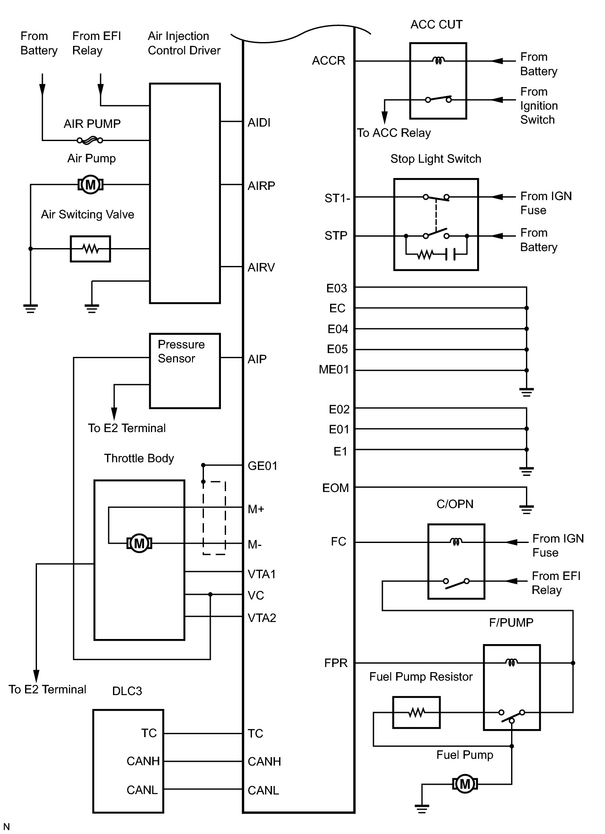

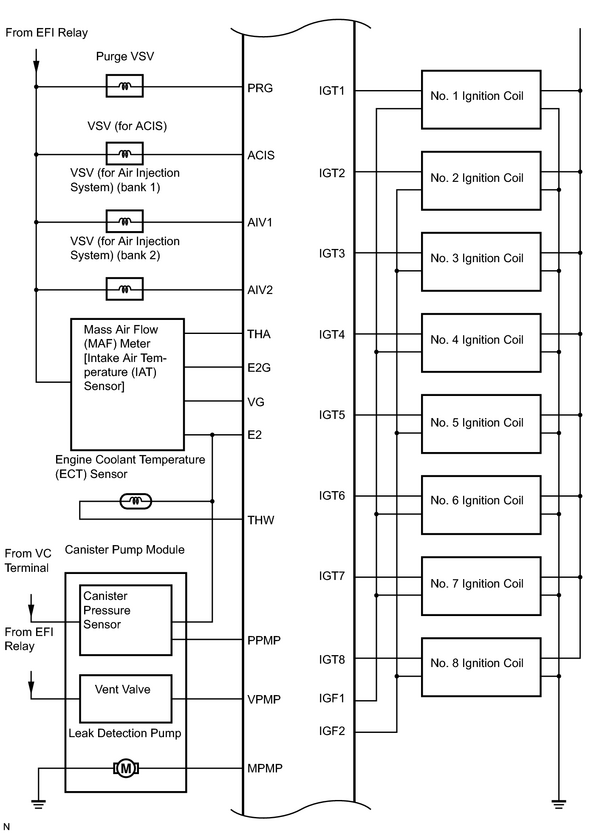

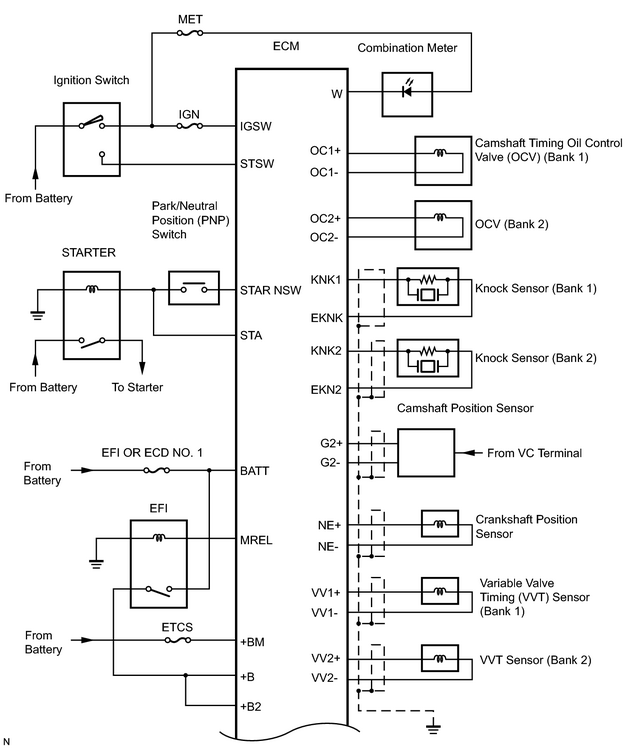

SYSTEM DIAGRAM
