2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2610; ECM / PCM Internal Engine Off Timer Performance; 2007 MY LX470 [08/2006

Last Modified: 7-3-2017	6.8:8.0.40	Doc ID: RM000000T6X01MX
Model Year Start: 2007	Model: LX470	Prod Date Range: [08/2006 - ]
Title: 2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2610; ECM / PCM Internal Engine Off Timer Performance; 2007 MY LX470 [08/2006 - ]

DTC

P2610

ECM / PCM Internal Engine Off Timer Performance

DTC SUMMARY

DTC No.	Monitoring Item	Malfunction Detection Condition	Trouble Area	Detection Timing	Detection Logic
P2610	Soak timer (built into ECM)	ECM internal malfunction	ECM	Engine running	2 trip

DESCRIPTION

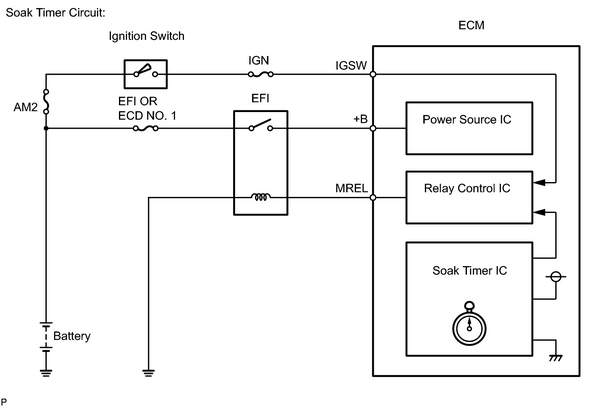

The soak timer is built into the ECM. To ensure that the Evaporative Emission (EVAP) monitor values will be accurate, the soak timer counts 5 hours (+-15 minutes) from when the ignition switch is turned OFF. This allows the fuel to cool down, which stabilizes the Fuel Tank Pressure (FTP). When approximately 5 hours have passed, the ECM turns ON.

MONITOR DESCRIPTION

5 hours after the ignition switch is turned OFF, the soak timer activates the ECM to begin the EVAP system monitor. While the engine is running, the ECM monitors the synchronization of the soak timer and the CPU clock. If the soak timer and CPU clock are not synchronized, the ECM interprets this as a malfunction, illuminates the MIL and sets the DTC (2 trip detection logic).

MONITOR STRATEGY

Required Sensors/Components	ECM
Frequency of Operation	Once per driving cycle
Duration	10 minutes
MIL Operation	2 driving cycles
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever following DTC not present	None
Ignition switch	ON
Engine	Running
Battery voltage	8 V or more
Starter	OFF

TYPICAL MALFUNCTION THRESHOLDS

Soak timer measurement when ECM CPU clock counts 10 minutes

Less than 7 minutes or more than 13 minutes

INSPECTION PROCEDURE

HINT:

DTC P2610 is set if an internal ECM problem is detected. Diagnostic procedures are not required. ECM replacement is required.
Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.	REPLACE ECM

(a) Replace ECM .

2.	CHECK WHETHER DTC OUTPUT RECURS

(a) Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.

(b) Turn the ignition switch ON and turn the intelligent tester ON.

(d) Start the engine and wait for 10 minutes or more.

(e) Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC / INFO / PENDING CODES.

(f) If no pending DTC is displayed, the repair has been successfully completed.

END
