| Last Modified: 7-3-2017 | 6.8:8.0.40 | Doc ID: RM000000WIC013X |
| Model Year Start: 2007 | Model: LX470 | Prod Date Range: [08/2006 - ] |
| Title: CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: SYSTEM DIAGRAM; 2007 MY LX470 [08/2006 - ] | ||

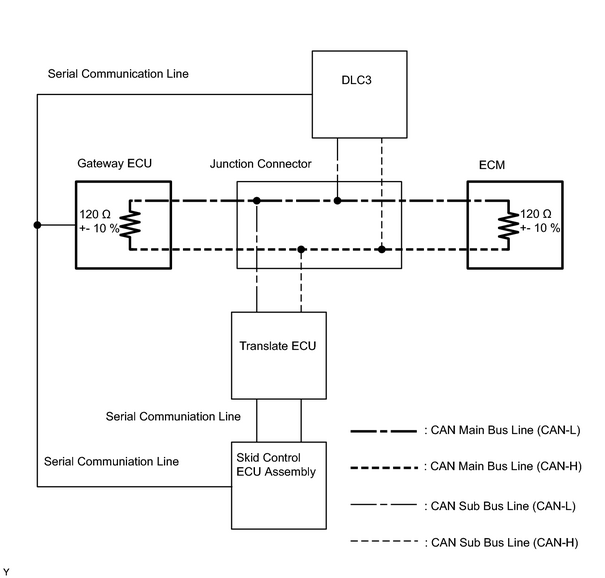

SYSTEM DIAGRAM
HINT:
The ECM uses the CAN communication system to perform DTC communication instead of the conventional communication line (SIL).
|
|
