TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: INITIALIZATION; 2007 MY LX470 [08/2006

Last Modified: 7-3-2017	6.8:8.0.40	Doc ID: RM000000XMZ00WX
Model Year Start: 2007	Model: LX470	Prod Date Range: [08/2006 - ]
Title: TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: INITIALIZATION; 2007 MY LX470 [08/2006 - ]

INITIALIZATION

1. DESCRIPTION OF INITIALIZATION

(a) Perform initialization in the following cases:

Before delivery of a new vehicle.
After replacement of the tire pressure warning ECU and receiver.*
After replacement of the tire pressure warning valve and transmitter.
When changing the tire inflation pressure by changing traveling speed or load weight, etc.

HINT:

*: Perform initialization after the transmitter ID registration is completed .

(b) Before initialization

(1) Set the air pressure of all wheels (including spare tire) to the specified value .

2. INITIALIZATION PROCEDURE

(a) Turn the ignition switch ON.

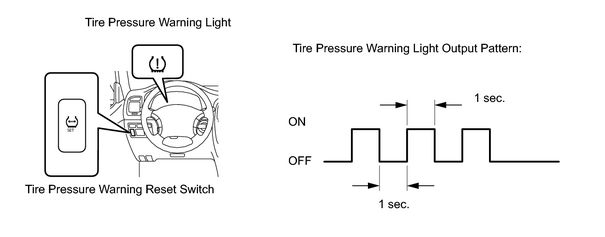

(b) Press and hold the tire pressure warning switch for 3 seconds or more so that the tire pressure warning light blinks 3 times.

(d) Connect the intelligent tester to the DLC3.

(e) Turn the ignition switch ON and the tester ON.

(f) Following the display on the intelligent tester, select the "DATA LIST".

(g) Read the "TIREPRESS" values.

(h) Check that the initialization has been completed.

(1) Confirm that the tire pressure data of all tires are displayed on the intelligent tester screen.

NOTICE:

The initialization is normally completed within 2 to 3 minutes.
If the initialization has not been completed successfully, DTC C2177/77 is set after approximately 20 minutes.
The initialization can be terminated by making a short circuit between terminals 13 (TC) and 4 (CG) of the DLC3 connector.

Tire pressure warning ECU and receiver

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
TIREPRESS1	ID1 tire inflation pressure/ min.: Absolute pressure / 0 kPa (0 kgf/cm ² , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm ² , -14 psi) max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm ² , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm ² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm ² , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm ² , -14 psi) is displayed for relative pressure, data has not been received.*
TIREPRESS2	ID2 tire inflation pressure/ min.: Absolute pressure / 0 kPa (0 kgf/cm ² , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm ² , -14 psi) max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm ² , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm ² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm ² , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm ² , -14 psi) is displayed for relative pressure, data has not been received.*
TIREPRESS3	ID3 tire inflation pressure/ min.: Absolute pressure / 0 kPa (0 kgf/cm ² , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm ² , -14 psi) max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm ² , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm ² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm ² , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm ² , -14 psi) is displayed for relative pressure, data has not been received.*
TIREPRESS4	ID4 tire inflation pressure/ min.: Absolute pressure / 0 kPa (0 kgf/cm ² , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm ² , -14 psi) max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm ² , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm ² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm ² , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm ² , -14 psi) is displayed for relative pressure, data has not been received.*
TIREPRESS5	ID5 tire inflation pressure/ min.: Absolute pressure / 0 kPa (0 kgf/cm ² , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm ² , -14 psi) max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm ² , 92.5 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm ² , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm ² , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm ² , -14 psi) is displayed for relative pressure, data has not been received.*

HINT:

The initialization is complete when the DATA LIST "TIREPRESS" display shows the correct pressures.
*: It may take about 2 or 3 minutes until the values are displayed. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2125/25 .
