| Title: A750F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: DISASSEMBLY; 2007 MY LX470 [08/2006 - ] | ||
DISASSEMBLY
|

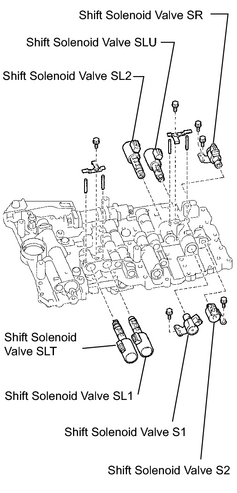

1. REMOVE SHIFT SOLENOID VALVE (a) Remove the bolt, lock plate, 2 pins and shift solenoid valve SLT and SL1. (b) Remove the bolt, lock plate, 2 pins and shift solenoid valves SLU and SL2. (c) Remove the 2 bolts and shift solenoid valve SR. (d) Remove the bolt and shift solenoid valve S1. (e) Remove the bolt and shift solenoid valve S2. |
|
|
|
