A

-

Half Connection Detection Mechanism

B

-

Half Connection Detection Mechanism

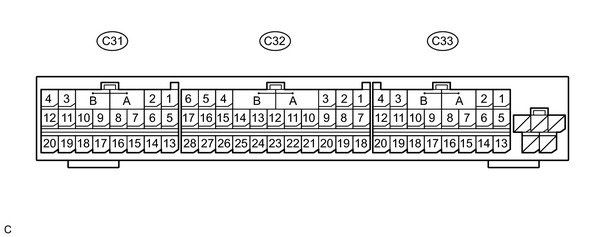

C31-1

CSL-

Rear Airbag Sensor LH

C31-2

LBE-

Front Seat Inner Belt LH (Seat Belt Buckle Switch LH)

C31-3

LSP-

Seat Position Sensor

C31-4

LSP+

Seat Position Sensor

C31-7

PL-

Front Seat Outer Belt LH (Front Pretensioner Squib LH)

C31-8

PL+

Front Seat Outer Belt LH (Front Pretensioner Squib LH)

C31-9

ICL+

Curtain Shield Airbag LH (Curtain Shield Squib LH)

C31-10

ICL-

Curtain Shield Airbag LH (Curtain Shield Squib LH)

C31-11

SFL-

Front Seat Side Airbag (Side Squib LH)

C31-12

SFL+

Front Seat Side Airbag (Side Squib LH)

C31-13

ESCL

Rear Airbag Sensor LH

C31-14

VUCL

Rear Airbag Sensor LH

C31-15

CSL+

Rear Airbag Sensor LH

C31-16

VUPL

Side Airbag Sensor LH

C31-17

SSL+

Side Airbag Sensor LH

C31-18

ESL

Side Airbag Sensor LH

C31-19

LBE+

Front Seat Inner Belt LH (Seat Belt Buckle Switch LH)

C31-20

SSL-

Side Airbag Sensor LH

C32-1

P-AB

Passenger Airbag OFF Indicator

C32-2

PBEW

Seat belt warning light

C32-3

LA

Combination Meter

C32-5

IG2

IGN Fuse

C32-6

RMIL

Combination Meter

C32-7

P2-

Front Passenger Airbag (Passenger Side Squib 2nd Step)

C32-8

P2+

Front Passenger Airbag (Passenger Side Squib 2nd Step)

C32-9

+SR

Front Airbag Sensor RH

C32-10

P+

Front Passenger Airbag (Passenger Side Squib)

C32-11

P-

Front Passenger Airbag (Passenger Side Squib)

C32-12

SIL

DLC3

C32-13

D-

Steering Pad (Driver Side Squib)

C32-14

D+

Steering Pad (Driver Side Squib)

C32-15

+SL

Front Airbag Sensor LH

C32-16

D2+

Steering Pad (Driver Side Squib 2nd Step)

C32-17

D2-

Steering Pad (Driver Side Squib 2nd Step)

C32-18

GSW3

Mayday

C32-19

TC

DLC3

C32-20

-SR

Front Airbag Sensor RH

C32-21

RMSW

RSCA OFF SWITCH

C32-23

GSW2

ECM

C32-25

PAON

Passenger Airbag ON Indicator

C32-26

-SL

Front Airbag Sensor LH

C32-27

E1

Ground

C32-28

E2

Ground
