Title: PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: Reverse Signal Circuit; 2007 MY LX470 [08/2006 - ] |
DESCRIPTION
-
The television camera ECU receives the reverse signal from the park/neutral position switch.

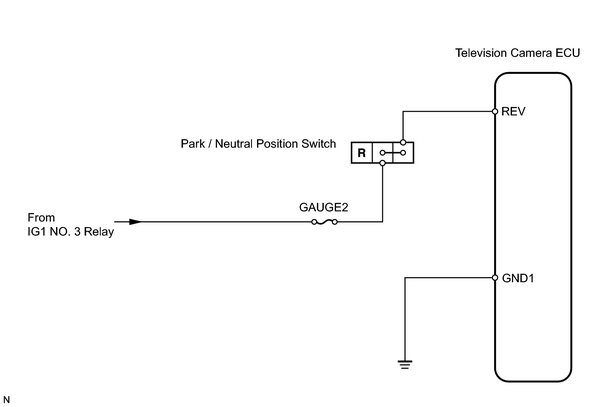

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1.
|

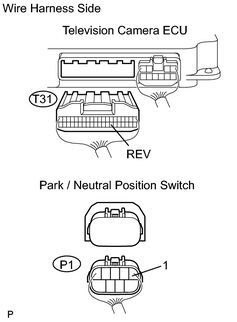

CHECK WIRE HARNESS (TELEVISION CAMERA ECU - PARK / NEUTRAL POSITION SWITCH)
|
|
(a) Disconnect the T31 ECU connector.
|
|
(b) Disconnect the P1 switch connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
|
Tester Connection
|
Specified Condition
|
|
T31-27 (REV) - P1-1
|
Below 1 Ω
|
|
T31-27 (REV) - Body ground
|
10 kΩ or higher
|
| NG |
|
REPAIR OR REPLACE HARNESS AND CONNECTOR
|
| OK |
|
|
|
2.
|
CHECK WIRE HARNESS (TELEVISION CAMERA ECU - BODY GROUND)
|
|
(a) Disconnect the T32 ECU connector.
|
|
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
|
Tester Connection
|
Specified Condition
|
|
T32-8 (GND1) - Body ground
|
Below 1 Ω
|
| NG |
|
REPAIR OR REPLACE HARNESS AND CONNECTOR
|
| OK |
|
|
|
3.
|
INSPECT PARK / NEUTRAL POSITION SWITCH (REV VOLTAGE)
|
|
(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
T31-27 (REV) - Body ground
|
Ignition switch ON, shift lever R position
|
10 to 14 V
|
|
|
| NG |
|
INSPECT PARK / NEUTRAL POSITION SWITCH
|
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
|
|
