| Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B0110/43; Short in Side Squib RH Circuit; 2007 MY LX470 [08/2006 - ] | ||
|
DTC |
B0110/43 |
Short in Side Squib RH Circuit |
DESCRIPTION
The side squib RH circuit consists of the center airbag sensor and the side airbag RH.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0110/43 is recorded when a short is detected in the side squib RH circuit.
|
DTC No. |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
B0110/43 |
|
|

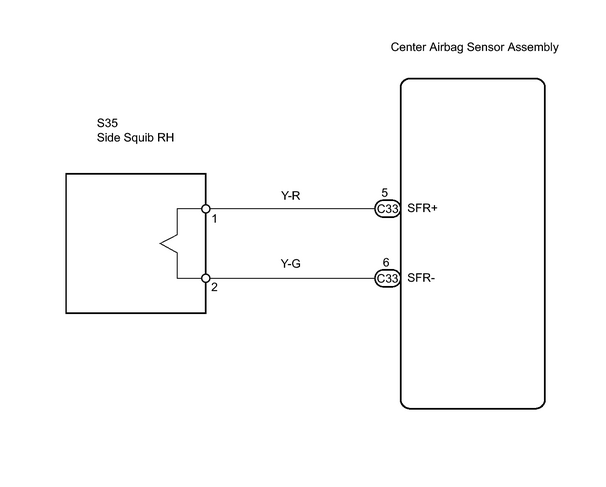

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK NO. 2 FLOOR WIRE (SIDE SQUIB RH CIRCUIT) |
|
(a) Turn the ignition switch to LOCK. |
|
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the center airbag sensor and the side airbag RH (side squib RH).
(d)
Release the airbag activation prevention mechanism built in the connector of the No. 2 floor wire on the center airbag sensor side
![2007 MY LX470 [08/2006 - ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DIAGNOSIS SYSTEM](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DIAGNOSIS SYSTEM")
.

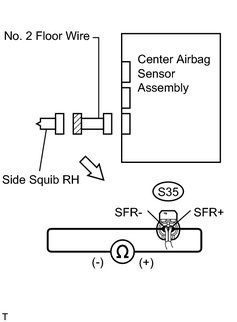

(e) Measure the resistance between SFR+ and SFR- of the S35 No. 2 floor wire connector on the side airbag RH (side squib RH) side.
Standard resistance:
1 MΩ or higher
| NG |
|
|
|
2. |

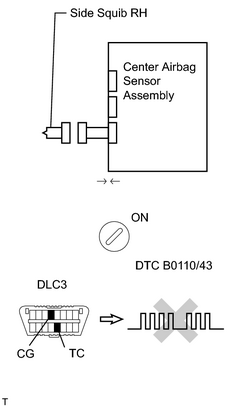

CHECK CENTER AIRBAG SENSOR ASSEMBLY |
|
(a) Connect the connector to the center airbag sensor. |
|
(b) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
(c) Turn the ignition switch to ON, and wait at least for 10 seconds.
(d)
Clear the DTC stored in memory
.
(e) Turn the ignition switch to LOCK, and wait at least for 10 seconds.
(f) Turn the ignition switch to ON, and wait at least for 10 seconds.
(g)
Check the DTC
.
OK:
DTC B0110/43 is not output.
HINT:
Codes other than code B0110/43 may be output at this time, but they are not relevant to this check.
| NG |
|
|
|
3. |

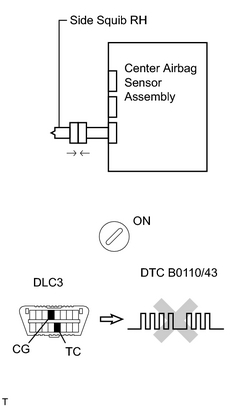

CHECK SIDE SQUIB RH |
|
(a) Turn the ignition switch to LOCK. |
|
(b) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
(c) Connect the side airbag RH (side squib RH) connector.
(d) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
(e) Turn the ignition switch to ON, and wait at least for 10 seconds.
(f)
Clear the DTC stored in memory
.
(g) Turn the ignition switch to LOCK, and wait at least for 10 seconds.
(h) Turn the ignition switch to ON, and wait at least for 10 seconds.
(i)
Check the DTC
.
OK:
DTC B0110/43 is not output.
HINT:
Codes other than code B0110/43 may be output at this time, but they are not relevant to this check.
| NG |
|
| OK |
|
|
|
