Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1160/83; Short in Curtain Shield Squib RH Circuit; 2007 MY LX470 [08/2006 -        ]

DTC

B1160/83

Short in Curtain Shield Squib RH Circuit

DESCRIPTION

The curtain shield squib RH circuit consists of the center airbag sensor and the curtain shield airbag RH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1110/83 is recorded when a short is detected in the curtain shield squib RH circuit.

DTC No.

DTC Detection Condition

Trouble Area

B1110/83
  • Short in curtain shield squib RH circuit
  • Curtain shield squib RH malfunction
  • Center airbag sensor assembly malfunction
  • Curtain shield airbag RH (Curtain shield squib RH)
  • Center airbag sensor assembly
  • No. 2 floor wire

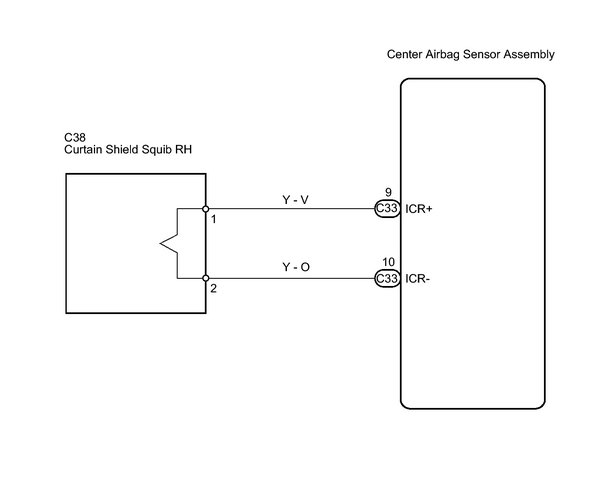

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK NO. 2 FLOOR WIRE (CURTAIN SHIELD SQUIB RH CIRCUIT)

(a) Turn the ignition switch to LOCK.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Disconnect the connectors from the center airbag sensor and the curtain shield airbag RH.

(d) Release the airbag activation prevention mechanism built in the connector of the No. 2 floor wire on the center airbag sensor side 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DIAGNOSIS SYSTEM .

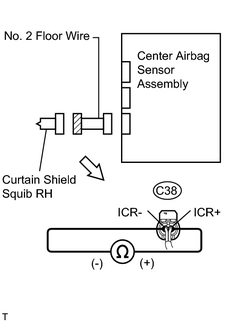

(e) Measure the resistance between ICR+ and ICR- of the C38 No. 2 floor wire connector on the curtain shield airbag RH (curtain shield squib RH) side.

Standard resistance:

1 MΩ or higher
NG

REPAIR OR REPLACE NO. 2 FLOOR WIRE

OK

2.

CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Connect the connector to the center airbag sensor.

(b) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.

(c) Turn the ignition switch to ON, and wait at least for 10 seconds.

(d) Clear the DTC stored in memory 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

(e) Turn the ignition switch to LOCK, and wait at least for 10 seconds.

(f) Turn the ignition switch to ON, and wait at least for 10 seconds.

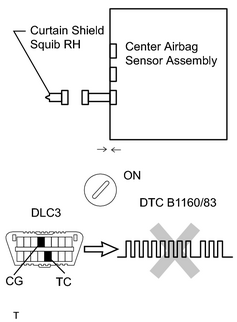

(g) Check the DTC 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

OK:

DTC B1110/83 is not output.

HINT:

Codes other than code B1110/83 may be output at this time, but they are not relevant to this check.
NG

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

OK

3.

CHECK CURTAIN SHIELD AIRBAG ASSEMBLY RH

(a) Turn the ignition switch to LOCK.

(b) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.

(c) Connect the curtain shield airbag RH (curtain shield squib RH) connector.

(d) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.

(e) Turn the ignition switch to ON, and wait at least for 10 seconds.

(f) Clear the DTC stored in memory 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

(g) Turn the ignition switch to LOCK, and wait at least for 10 seconds.

(h) Turn the ignition switch to ON, and wait at least for 10 seconds.

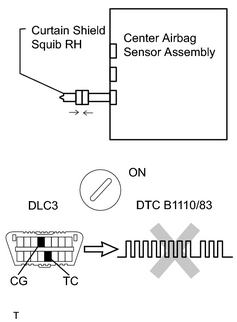

(i) Check the DTC 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

OK:

DTC B1110/83 is not output.

HINT:

Codes other than code B1110/83 may be output at this time, but they are not relevant to this check.
NG

REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY RH (CURTAIN SHIELD SQUIB RH)

OK

USE SIMULATION METHOD TO CHECK
