Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1167/85; Short to GND in Curtain Shield Squib LH Circuit; 2007 MY LX470 [08/2006 -        ]

DTC

B1167/85

Short to GND in Curtain Shield Squib LH Circuit

DESCRIPTION

The curtain shield squib LH circuit consists of the center airbag sensor and the curtain shield airbag LH.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1167/85 is recorded when ground short is detected in the curtain shield squib LH circuit.

DTC No.

DTC Detection Condition

Trouble Area

B1167/85
  • Short in curtain shield squib LH circuit (to ground)
  • Curtain shield squib LH malfunction
  • Center airbag sensor assembly malfunction
  • Curtain shield airbag center LH (Curtain shield squib LH)
  • Center airbag sensor assembly
  • No. 1 floor wire

WIRING DIAGRAM

Refer to DTC B1165/87 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1165/87; Short in Curtain Shield Squib LH Circuit+ .

INSPECTION PROCEDURE

PROCEDURE

1.

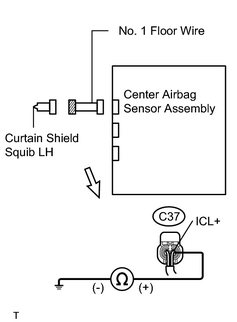

CHECK NO. 1 FLOOR WIRE (CURTAIN SHIELD SQUIB LH CIRCUIT)

(a) Turn the ignition switch to LOCK.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Disconnect the connectors from the center airbag sensor center and the curtain shield airbag LH.

(d) Measure the resistance between the body ground and ICL+ of the C37 No. 1 floor wire connector on the curtain shield airbag LH (curtain shield squib LH) side.

Standard resistance:

1 MΩ or higher
NG

REPAIR OR REPLACE NO. 1 FLOOR WIRE

OK

2.

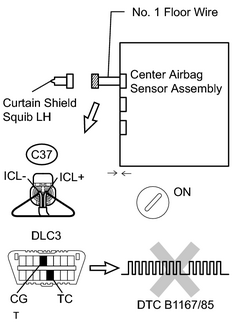

CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Connect the connector to the center airbag sensor.

(b) Using a service wire, connect ICL+ and ICL- of the C37 No. 1 floor wire connector on the curtain shield airbag LH (curtain shield squib LH) side.

(c) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.

(d) Turn the ignition switch to ON, and wait at least for 10 seconds.

(e) Clear the DTC stored in memory 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

(f) Turn the ignition switch to LOCK, and wait at least for 10 seconds.

(g) Turn the ignition switch to ON, and wait at least for 10 seconds.

(h) Check the DTC 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

OK:

DTC B1167/85 is not output.

HINT:

Codes other than code B1167/85 may be output at this time, but they are not relevant to this check.
NG

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

OK

3.

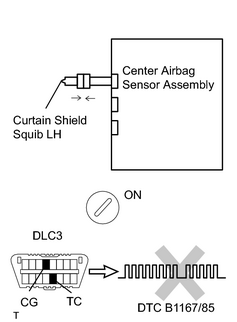

CHECK CURTAIN SHIELD SQUIB LH

(a) Turn the ignition switch to LOCK.

(b) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.

(c) Connect the curtain shield airbag LH (curtain shield squib LH) connector.

(d) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.

(e) Turn the ignition switch to ON, and wait at least for 10 seconds.

(f) Clear the DTC stored in memory 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

(g) Turn the ignition switch to LOCK, and wait at least for 10 seconds.

(h) Turn the ignition switch to ON, and wait at least for 10 seconds.

(i) Check the DTC 2007 MY LX470 [08/2006 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

OK:

DTC B1167/85 is not output.

HINT:

Codes other than code B1167/85 may be output at this time, but they are not relevant to this check.
NG

REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY LH (CURTAIN SHIELD SQUIB LH)

OK

USE SIMULATION METHOD TO CHECK
