Stop Light Circuit

DESCRIPTION

The circuit is used to turn the stop light on.

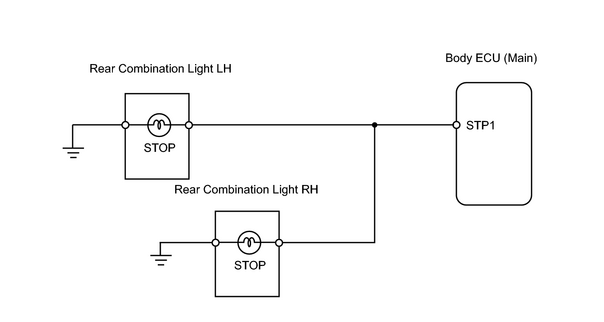

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

INSPECT STOP LIGHT BULB
NG

REPLACE STOP LIGHT BULB

OK

2.

CHECK WIRE HARNESS (STOP LIGHT - BODY ECU (MAIN) AND BODY GROUND)
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
