Last Modified: 7-3-2017 6.8:8.0.40 Doc ID: RM0000018BY004X
Model Year Start: 2007 Model: LX470 Prod Date Range: [08/2006 -           ]
Title: LIGHTING: LIGHTING SYSTEM: B1244; Light Sensor Circuit Malfunction; 2007 MY LX470 [08/2006 -        ]

DTC

B1244

Light Sensor Circuit Malfunction

DESCRIPTION

This DTC is output when failure of the light control sensor circuit is detected.

DTC No.

DTC Detection Condition

Trouble Area

B1244
  • Malfunction of light sensor
  • Open or short light sensor circuit
  • Automatic light control sensor
  • Wire harness
  • Body ECU (Main)

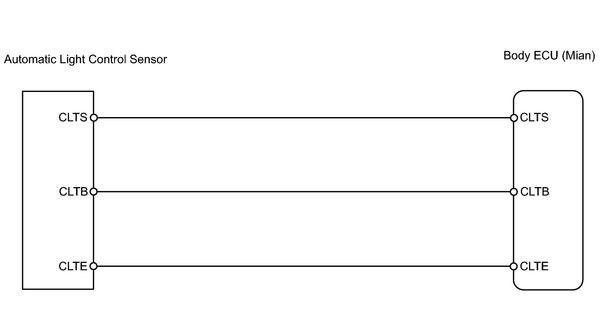

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

When using the intelligent tester, start from *1. When not using intelligent tester, start from *2.

PROCEDURE

1.

CHECK AUTOMATIC LIGHT CONTROL SENSOR*1

(a) Connect the intelligent tester to the DLC3.

(b) Turn the ignition switch on and intelligent tester main switch on.

(c) The value of the illumination rate should change in the following range when the light sensor is put in the light or covered by a hand.

OK:

0.8 to 22.0 ms

HINT:

This is the time to be taken for the light sensor to generate one circle of frequency according to the brightness.

OK

REPLACE BODY ECU (MAIN)

NG

2.

CHECK WIRE HARNESS (BODY ECU (MAIN) - AUTOMATIC LIGHT CONTROL SENSOR)*2
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

3.

INSPECT AUTOMATIC LIGHT CONTROL SENSOR

(a) Inspect automatic light control sensor 2007 MY LX470 [08/2006 -        ]; LIGHTING: AUTOMATIC LIGHT CONTROL SENSOR: ON-VEHICLE INSPECTION .

NG

REPLACE AUTOMATIC LIGHT CONTROL SENSOR

OK

REPLACE BODY ECU (MAIN)
