Title:
2UZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM; 2007 MY LX470 [08/2006 - ]

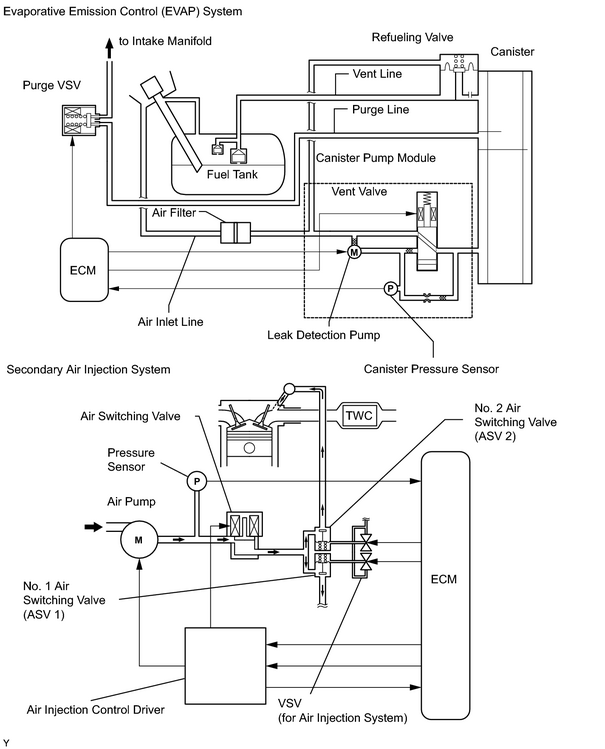

SYSTEM DIAGRAM
