Last Modified: 7-3-2017 6.8:8.0.40 Doc ID: RM0000018ID001X
Model Year Start: 2007 Model: LX470 Prod Date Range: [08/2006 -           ]
Title: WIPER AND WASHER: WIPER AND WASHER SYSTEM: Reverse Signal Circuit; 2007 MY LX470 [08/2006 -        ]

Reverse Signal Circuit

DESCRIPTION

This circuit sends the park/neutral position switch signal (reverse or other) to the sub body ECU. If this signal cannot be received, the sub body ECU will not perform the reverse linked function control.

HINT:

Refer to the automatic transmission section for the park/neutral position switch check 2007 MY LX470 [08/2006 -        ]; A750F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0705; Transmission Range Sensor Circuit Malfunction (PRNDL Input) .

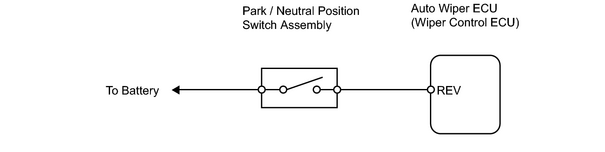

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

When using the intelligent tester, start from *1. When not using intelligent tester, start from *2.

PROCEDURE

1.

READ VALUE USING INTELLIGENT TESTER (PARK / NEUTRAL POSITION SWITCH)*1

(a) Connect the intelligent tester (with CAN VIM) to the DLC3.

(b) Turn the ignition switch ON and push the intelligent tester main switch on.

(c) Select the item "NSW SW" in the DATA LIST and read the value displayed 2007 MY LX470 [08/2006 -        ]; WIPER AND WASHER: WIPER AND WASHER SYSTEM: DATA LIST / ACTIVE TEST .

OK:

Park/neutral switch position R: ON

Park/neutral switch position except R: OFF

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

NG

2.

CHECK WIRE HARNESS (PARK / NEUTRAL POSITION SWITCH - AUTO WIPER ECU (WIPER CONTROL ECU))*2
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
