| Last Modified: 7-3-2017 | 6.8:8.0.40 | Doc ID: RM0000018L600AX |
| Model Year Start: 2007 | Model: LX470 | Prod Date Range: [08/2006 - ] |
| Title: TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: SYSTEM DIAGRAM; 2007 MY LX470 [08/2006 - ] | ||

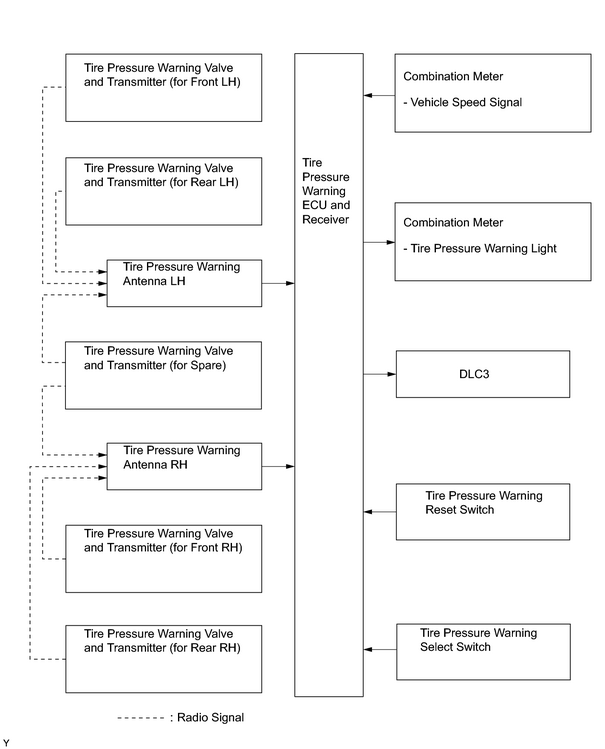

SYSTEM DIAGRAM
HINT:
The tire pressure warning valve and transmitter sends information on the temperature inside the tire, the ID, and the tire pressure.
|
|
