Title: AIR CONDITIONING: AIR CONDITIONING SYSTEM: 22; Compressor Lock Sensor Circuit; 2007 MY LX470 [08/2006 -        ]

DTC

22

Compressor Lock Sensor Circuit

DESCRIPTION

This sensor sends 1 pulse per engine revolution to the ECM.

If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor OFF. The indicator flashes at about 1 second intervals.

DTC No.

Detection Item

Trouble Area

22

All conditions below are detected for 3 seconds or more

(a) Engine speed: 450 rpm or more

(b) Ratio between engine and compressor speed deviates 20% or more in comparison with normal operation
  • Compressor lock sensor
  • Compressor
  • ECM
  • Harness or connector between compressor lock sensor and ECM
  • Harness or connector between ECM and A/C amplifier
  • A/C amplifier

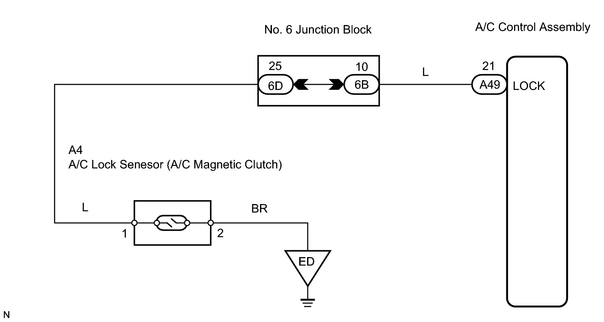

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK COMPRESSOR LOCK SENSOR

(a) Disconnect the A4 compressor connector.

(b) Measure the resistance between terminals 1 and 2 of the compressor lock sensor connector.

Standard resistance:

65 to 125 Ω at 20°C (68°F)
NG

REPLACE COMPRESSOR

OK

2.

CHECK WIRE HARNESS (AIR CONDITIONING AMPLIFIER - COMPRESSOR LOCK SENSOR)
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

3.

CHECK WIRE HARNESS (COMPRESSOR LOCK SENSOR - BODY GROUND)
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

REPLACE AIR CONDITIONING AMPLIFIER
