| Last Modified: 7-3-2017 | 6.8:8.0.40 | Doc ID: RM0000018RW004X |
| Model Year Start: 2007 | Model: LX470 | Prod Date Range: [08/2006 - ] |
| Title: AXLE: FRONT AXLE HUB BOLT: COMPONENTS; 2007 MY LX470 [08/2006 - ] | ||
COMPONENTS

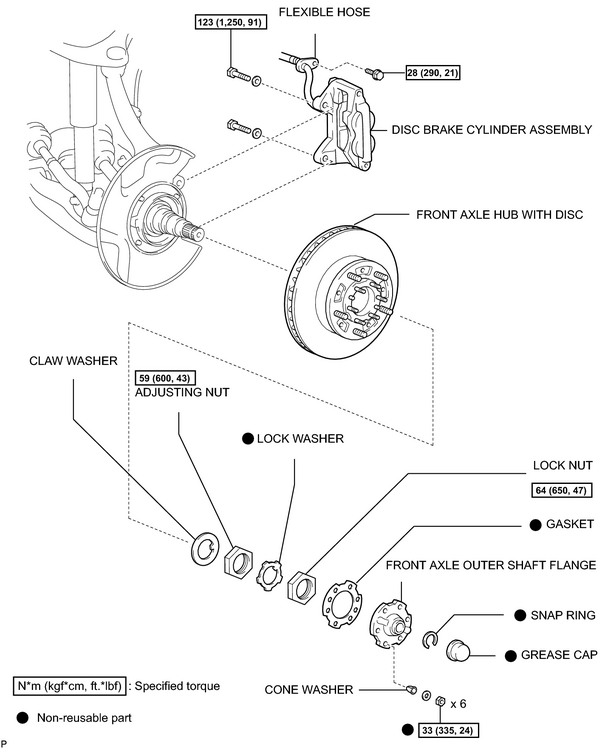

ILLUSTRATION

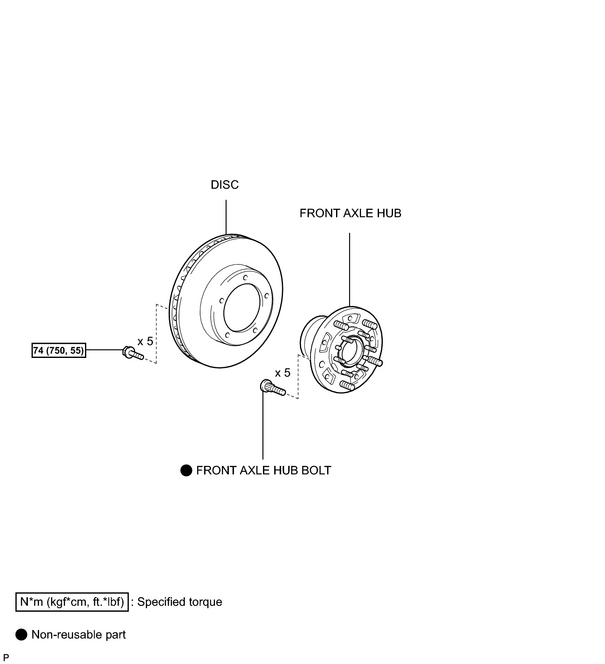

ILLUSTRATION
|
|
