INSTALLATION

1. INSTALL FUEL PUMP FILTER Install the fuel pump filter to the fuel pump.

2. INSTALL FUEL PUMP

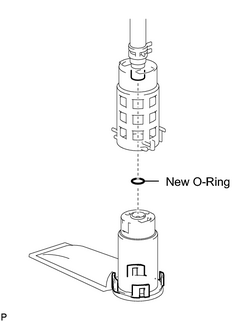

(a) Apply a light coat of gasoline to a new O-ring, and install it to the fuel pump.

(b) Attach the 4 claws to the claw holes and install the fuel pump and fuel pump filter assembly.

(c) Install the rubber cushion to the fuel pump.

(d) Connect the fuel hose to the outlet port of the fuel pump.

(e) Install the fuel pump by pushing the lower side of the fuel pump.

3. INSTALL LEAD WIRE

(a) Install the lead wire to the fuel pump.

4. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY (a) Install a new gasket to the fuel suction plate. (b) Insert the fuel pump and sender gauge assembly into the fuel tank. (c) Install the fuel tank vent tube set plate with the 8 bolts. Torque: 3.5 N·m {35 kgf·cm, 31in·lbf}

5. CONNECT FUEL MAIN TUBE AND RETURN TUBE (FUEL TUBE CONNECTORS)

(a) Before installing the tube connectors, check for foreign matter on the connection between the nylon tube and the suction plate.

(b) Attach the fuel tube connectors to the ports of the fuel suction plate and insert the clips until you hear a click.

(c) After the connection, pull the clips to check that they are installed securely.

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. CHECK FOR FUEL LEAKS

8. INSTALL REAR FLOOR SERVICE HOLE COVER

(a) Install the service hole cover with the 2 screws.

(b) Install the front and rear floor carpets.

9. INSTALL REAR SEAT LOCK COVER

10. INSTALL STEP PLATE

11. INSTALL REAR DOOR SCUFF PLATE

12. INSTALL REAR NO. 1 SEAT

(a) Install the 2 seats.

13. PERFORM INITIALIZATION

(a) Perform initialization .

NOTICE:

Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
