ECU Power Source Circuit

DESCRIPTION

The circuit provides power to operate the auto wiper ECU (wiper control ECU).

This circuit is the power source for the BEAN driver circuit.

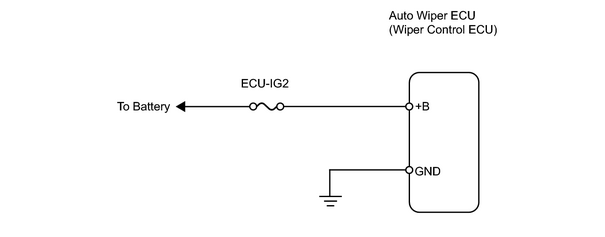

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

INSPECT FUSE (ECU-B2)

(a) Remove the ECU-B fuse from the cowl side junction block RH.

(b) Measure the resistance of the fuse.

Standard resistance:

Below 1 Ω

NG

REPLACE FUSE

OK

2.

CHECK WIRE HARNESS (AUTO WIPER ECU (WIPER CONTROL ECU) - BATTERY)

(a) Disconnect the A51 ECU connector.

(b) Measure the voltage of the wire harness side connector.

Standard voltage:

Tester Connection

Specified Condition

A51-8 (+B) - A51-12 (GND)

10 to 14 V
OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

NG

3.

CHECK WIRE HARNESS (AUTO WIPER ECU (WIPER CONTROL ECU) - BODY GROUND)
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

REPAIR OR REPLACE HARNESS AND CONNECTOR BETWEEN ECU AND BATTERY
