Stop Light Switch Circuit |
DESCRIPTION
This circuit sends a stop light switch ON or OFF signal to the ECU.

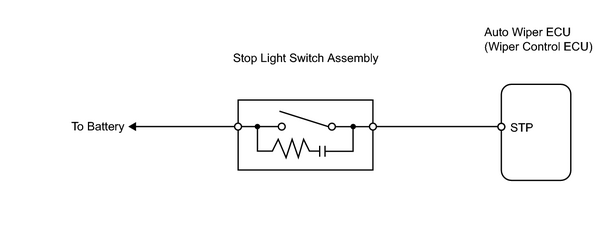

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT STOP LIGHT SWITCH ASSEMBLY |
(a)
Inspect the stop light switch assembly
![2007 MY LX470 [08/2006 - ]; LIGHTING: STOP LIGHT SWITCH: ON-VEHICLE INSPECTION+](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; LIGHTING: STOP LIGHT SWITCH: ON-VEHICLE INSPECTION+")
.
| NG |
|
|
|
2. |
CHECK WIRE HARNESS (STOP LIGHT SWITCH - AUTO WIPER ECU (WIPER CONTROL ECU)) |
| NG |
|
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE |
|
|
