| Title: WIPER AND WASHER: WIPER AND WASHER SYSTEM: Rain Sensor Circuit; 2007 MY LX470 [08/2006 - ] | ||
|
Rain Sensor Circuit |
DESCRIPTION
This circuit provides power to operate the rain sensor. The auto wiper system is operated when the wiper switch is in the AUTO position. The rain sensor is connected to each ECU at the multiplex communication circuit. When it detects raindrops that are on to the detection area of the windshield glass, it sends the wiper control signal according to the amount of raindrops.

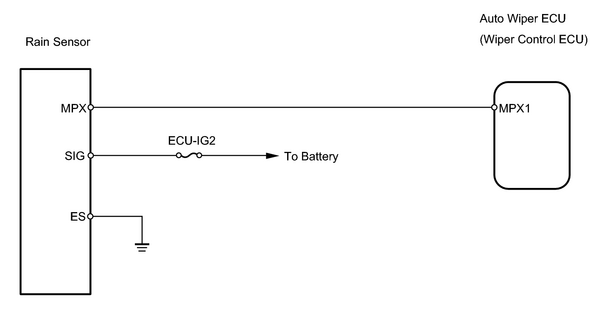

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT FUSE (ECU-IG2) |
(a) Remove the ECU-IG2 fuse from the cowl side junction block RH.
(b) Measure the resistance of the fuse.
Standard resistance:
Below 1 Ω
| NG |
|
|
|
2. |
CHECK WIRE HARNESS (RAIN SENSOR - BATTERY) |
(a) Disconnect the R40 sensor connector.
(b) Measure the voltage of the wire harness side connector.
Standard voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
R40-2 (SIG) - R40-4 (ES) |
Ignition switch ON |
10 to 14 V |
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE |
|
|
3. |
CHECK WIRE HARNESS (RAIN SENSOR - BODY GROUND) |
| NG |
|
| OK |
|
REPAIR OR REPLACE HARNESS AND CONNECTOR BETWEEN ECU AND BATTERY |
|
|
