REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. REMOVE NO. 2 ROOF DRIP SIDE FINISH MOULDING CENTER LH
(a) Remove the 3 mouldings.
2. REMOVE ROOF DRIP SIDE FINISH MOULDING LH

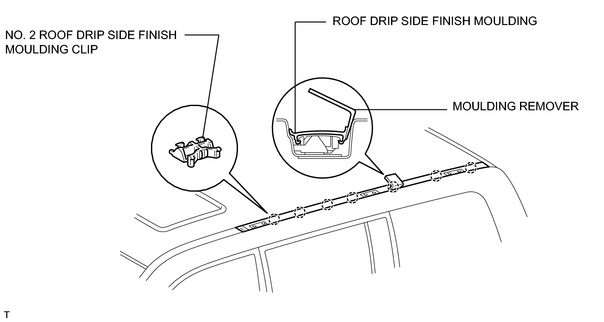

(a) Using a moulding remover, detach the claws and remove the moulding.
NOTICE:
- Be careful not to damage the vehicle body.
- Do not remove the No. 2 roof drip side finish moulding clip.
- If the clip is accidentally removed, replace it with a new one.
|
|
