WIPER AND WASHER: REAR WIPER MOTOR AND LINK: REMOVAL; 2007 MY LX470 [08/2006

Last Modified: 7-3-2017	6.8:8.0.40	Doc ID: RM000001A07006X
Model Year Start: 2007	Model: LX470	Prod Date Range: [08/2006 - ]
Title: WIPER AND WASHER: REAR WIPER MOTOR AND LINK: REMOVAL; 2007 MY LX470 [08/2006 - ]

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE REAR WIPER ARM

(a) Open the cover.

(b) Remove the nut and wiper arm.

3. REMOVE ASSIST GRIP PLUG

(a) Using a screwdriver, remove the 2 plugs.

HINT:

Tape the screwdriver tip before use

4. REMOVE ASSIST GRIP

(a) Remove the 2 screws and assist grip.

5. REMOVE INSIDE HANDLE BEZEL

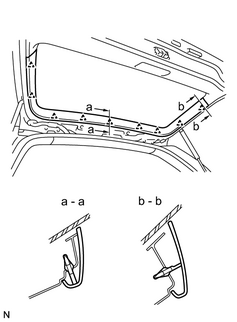

6. REMOVE CENTER BACK DOOR GARNISH

(a) Using a screwdriver, remove the garnish.

HINT:

Tape the screwdriver tip before use.

7. REMOVE BACK DOOR GARNISH

(a) Using a screwdriver, remove the garnish

HINT:

Tape the screwdriver tip before use.

8. REMOVE REAR WIPER MOTOR AND LINK ASSEMBLY

(a) Disconnect the connector.

(b) Remove the 5 bolts, wiper motor and link assembly.
