Title: AUDIO / VISUAL: MULTI-DISPLAY: Black Screen; 2007 MY LX470 [08/2006 - ] |

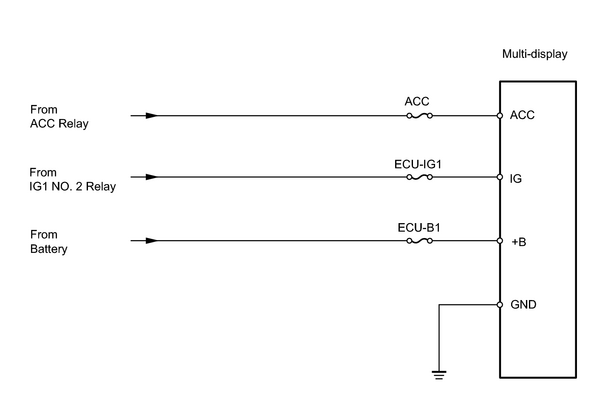

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1.
|
INSPECT BATTERY (VOLTAGE)
|
(a) Measure the voltage of the battery.
Standard voltage:
11 to 14 V
| NG |
|
RECHARGE OR REPLACE BATTERY
|
| OK |
|
|
|
2.
|
INSPECT FUSE (ACC, ECU-B1, ECU-IG1)
|
(a) Remove the ACC, ECU-B1 and ECU-IG1 fuses from cowl side junction block LH.
(b) Measure the resistance of the fuses.
Standard resistance:
Below 1 Ω
| NG |
|
REPLACE FUSE
|
| OK |
|
|
|
3.
|
CHECK WIRE HARNESS (MULTI-DISPLAY - BATTERY AND BODY GROUND)
|
|
(a) Disconnect the M12 display connector.
(b) Measure the resistance of the wire harness side connector.
Standard resistance:
|
Tester Connection
|
Specified Condition
|
|
M12-8 (GND) - Body ground
|
Below 1 Ω
|
(c) Measure the voltage of the wire harness side connector.
Standard voltage:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
M12-9 (+B) - Body ground
|
Always
|
10 to 14 V
|
|
M12-10 (ACC) - Body ground
|
Ignition switch ACC
|
10 to 14 V
|
|
M12-11 (IG) - Body ground
|
Ignition switch ON
|
10 to 14 V
|
|
|
| NG |
|
REPAIR OR REPLACE HARNESS AND CONNECTOR
|
| OK |
|
REPLACE MULTI-DISPLAY
|
|
