Night View Display Cover Opens with Night View Switch but Immediately Closes |
DESCRIPTION
The display cover assembly of the night view display has a limit switch built-in, which detects its open-close condition.
The display cover assembly does not work properly if the limit switch malfunctions.
NOTICE:
Do not apply grease to the sliding parts of the display cover.

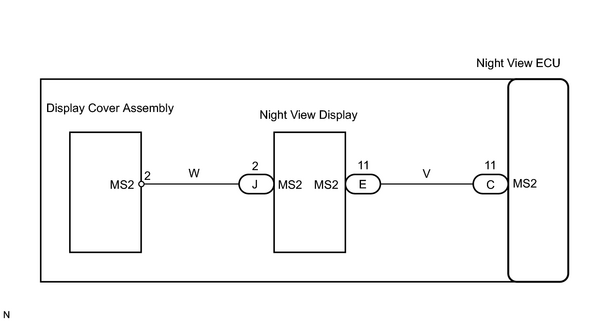

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK NIGHT VIEW DISPLAY (MS2 VOLTAGE) |
(a) Remove the combination meter assembly.
(b) Turn the ignition switch ON.
(c)
Switch to inspection mode
![2007 MY LX470 [08/2006 - ]; PARK ASSIST / MONITORING: NIGHT VIEW SYSTEM: OPERATION CHECK](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; PARK ASSIST / MONITORING: NIGHT VIEW SYSTEM: OPERATION CHECK")
.
|
(d) Measure the voltage between terminal MS2 (open limit signal of display cover) of the night view display connector "J" and body ground.
(Terminals of ECU:
Standard voltage: Below 1 V (When the display cover is fully open) |
|
| NG |
|
|
|
2. |
CHECK NIGHT VIEW ECU (MS2 VOLTAGE) |
(a) Turn the ignition switch ON.
(b)
Switch to inspection mode
.
|
(c) Measure the voltage between terminal MS2 (open limit signal of display cover) of the night view ECU connector "C" and body ground.
(Terminals of ECU:
Standard voltage: Below 1 V |
|
| NG |
|
| OK |
|
|
|
