Image does not Turn off |
DESCRIPTION
The night view ECU controls the night view display.
HINT:
Each time the ignition switch is turned ON, the night view switch also needs to be turned ON activate the system.

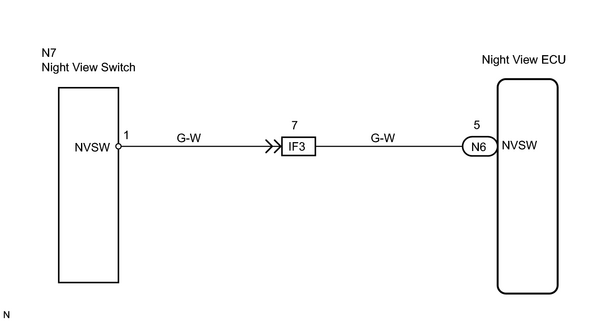

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT NIGHT VIEW SWITCH |
|
(a) Remove the night view switch. (b) Measure the resistance between terminals NVSW and E1 of the night view switch. Standard resistance:
HINT: If OK, reinstall the night view switch. |
|
| NG |
|
|
|
2. |
CHECK WIRE HARNESS (NIGHT VIEW ECU - NIGHT VIEW SWITCH) |
(a) Remove the combination meter assembly.
(b) Disconnect the connector "N6" from the night view ECU.
(c) Turn the night view switch ON.
|
(d) Measure the resistance between terminal NVSW of the night view ECU connector "N6" and body ground.
(Terminals of ECU:
Standard resistance:
|
|
![2007 MY LX470 [08/2006 - ]; PARK ASSIST / MONITORING: NIGHT VIEW SYSTEM: TERMINALS OF ECU](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; PARK ASSIST / MONITORING: NIGHT VIEW SYSTEM: TERMINALS OF ECU")
| NG |
|
| OK |
|
|
|
