Title: STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: C1555/55; EPS Motor Relay Circuit; 2007 MY LX470 [08/2006 -        ]

DTC

C1555/55

EPS Motor Relay Circuit

DESCRIPTION

When the VGRS ECU detects a malfunction in the motor relay circuit, it turns the warning light on and records the DTC at the same time, and then stops VGRS operation.

DTC No.

DTC Detection Condition

Trouble Area

C1555/55

Even when the estimated value of the motor power source current is at least 10 A, the system detects that the actual motor power source current is less than 3 A for 0.1 sec.
  • Power source circuit
  • VGRS ECU

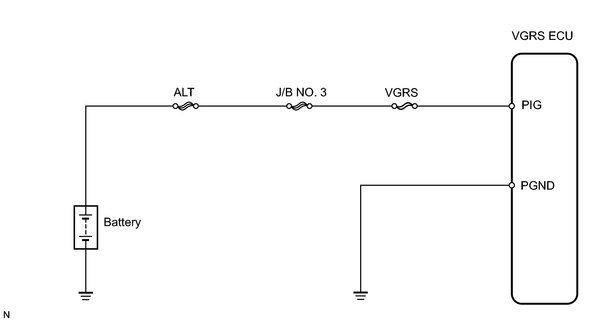

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

After the procedure, perform the counter clearance 2007 MY LX470 [08/2006 -        ]; STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: DTC CHECK / CLEAR .

PROCEDURE

1.

CHECK WIRE HARNESS (VGRS ECU - BODY GROUND)

(a) Turn the ignition switch OFF.

(b) Measure the resistance between terminals V10-2 (PGND) of the VGRS ECU and body ground.

Standard resistance:

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

2.

CHECK OUTPUT OF DTC C1522/22

(a) Turn the ignition switch ON and check the DTC 2007 MY LX470 [08/2006 -        ]; STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: DTC CHECK / CLEAR .

OK:

DTC C1522/22 is present

OK

FLOW OF DTC C1522/22

NG

REPLACE VGRS ECU
