Sliding Roof Control Switch Circuit |
DESCRIPTION
This circuit sends the sliding roof control switch operation signal to the ECU.

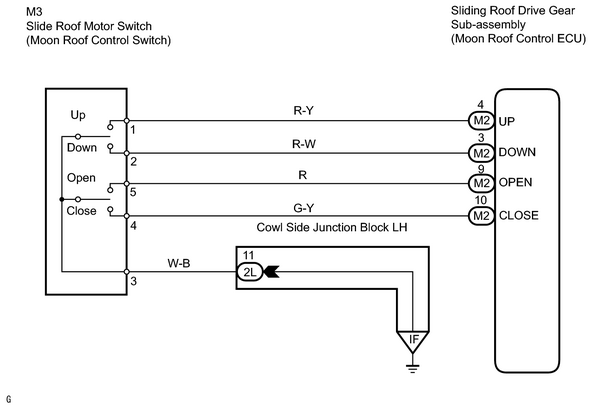

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHOOSE DIAGNOSIS METHOD |
(a) Choose the diagnosis method.
|
Result |
Proceed to |
|---|---|
|
Using intelligent tester |
A |
|
Not using intelligent tester |
B |
| B |
|
|
|
2. |
CHECK SLIDE ROOF MOTOR SWITCH OPERATION |
(a) Connect the intelligent tester (with CAN VIM) to the DLC3.
(b) Enter the DATA LIST function of the intelligent tester.
(c) Check that switch status (ON / OFF) changes on the screen of the intelligent tester as the slide roof motor switch of the vehicle is turned.
OK:
The switch status is normal.
| OK |
|
|
|
3. |
CHECK SLIDE ROOF MOTOR SWITCH |
(a)
Refer to inspection
![2007 MY LX470 [08/2006 - ]; SLIDING ROOF: SLIDING ROOF SYSTEM: INSPECTION](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; SLIDING ROOF: SLIDING ROOF SYSTEM: INSPECTION")
.
| NG |
|
|
|
4. |
CHECK WIRE HARNESS (SLIDING ROOF DRIVE GEAR - MAP LIGHT PLATE ASSEMBLY) |
| NG |
|
| OK |
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE |
|
|
