- RSCA off switch
- Center airbag sensor assembly
- Dash wire
- Instrument panel wire
| Last Modified: 7-3-2017 | 6.8:8.0.40 | Doc ID: RM000001BR7006X |
| Model Year Start: 2007 | Model: LX470 | Prod Date Range: [08/2006 - ] |
| Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1628/29; Roll Over Cut Off Indicator Malfunction; 2007 MY LX470 [08/2006 - ] | ||
|
DTC |
B1628/29 |
Roll Over Cut Off Indicator Malfunction |
DESCRIPTION
The RSCA off switch is a mechanism that operates both right and left side of the curtain shield airbag and the seat belt pretensioner when the center airbag sensor detects a roll-over.
The RSCA off switch indicator light is installed in the combination meter.
As operating the RSCA off switch, the indicator light comes on to inform the driver that the roll-over detection system is not working.
The initial setting of the roll-over detection system is on. It automatically operates every time the ignition switch is turned ON.
|
DTC No. |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
B1628/29 |
RSCA off indicator circuit malfunction |
|

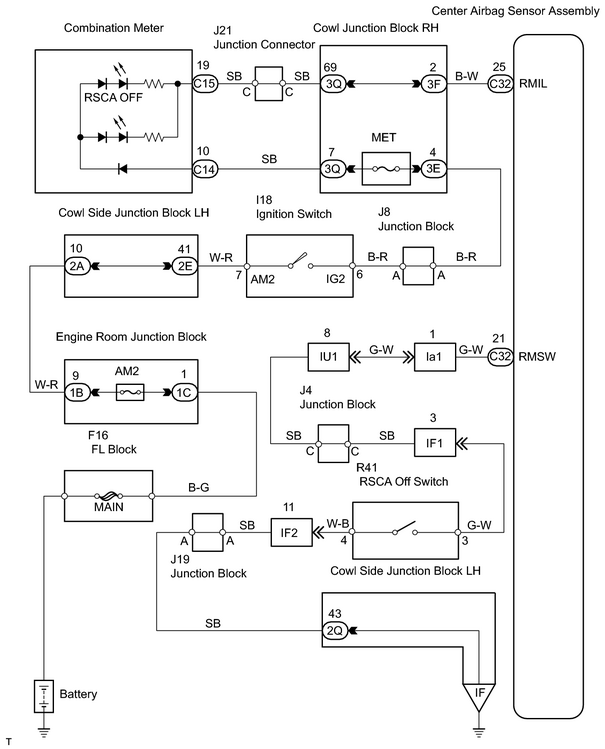

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK INDICATOR LIGHT |
(a) Disconnect the combination meter connector.
(b) Turn the ignition switch to ON.
(c) Check operation of RSCA off indicator light.
OK:
The indicator light does not light up.
| NG |
|
|
|
2. |
CHECK WIRE HARNESS (CENTER AIRBAG SENSOR ASSEMBLY - COMBINATION METER ASSEMBLY) |
|
(a) Turn the ignition switch to LOCK. (b) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds. (c) Disconnect the center airbag sensor connector. (d) Measure the resistance between the body ground and RMSW on the C32 center airbag sensor side connector between the combination meter and center airbag sensor. Standard resistance: 1 MΩ or higher |
|
| NG |
|
|
|
3. |

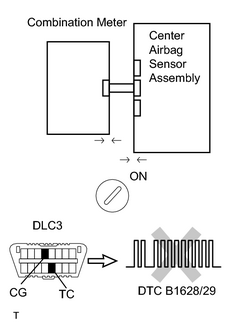

CHECK CENTER AIRBAG SENSOR ASSEMBLY |
|
(a) Connect the center airbag sensor connector. (b) Connect the combination meter connector. (c) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds. (d) Turn the ignition switch to ON, and wait at least for 10 seconds. (e)
Clear the DTC stored in memory
(f) Turn the ignition switch to LOCK, and wait at least for 10 seconds. (g) Turn the ignition switch to ON, and wait at least for 10 seconds. (h)
Check the DTC
OK: DTC B2628/29 is not output. HINT: Codes other than code B1628/29 may be output at this time, but they are not relevant to this check. |
|
![2007 MY LX470 [08/2006 - ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR")
| NG |
|
|
|
4. |
CHECK VOLTAGE OF COMBINATION METER ASSEMBLY |
(a) Disconnect the combination meter connector.
(b) Measure the voltage of the combination meter.
Standard voltage:
10 to 14 V
| NG |
|
|
|
5. |
CHECK WIRE HARNESS (CENTER AIRBAG SENSOR ASSEMBLY - COMBINATION METER ASSEMBLY) |
(a) Disconnect the combination meter connector.
(b) Measure the voltage between the body ground and RMSW on the combination meter side between the center airbag sensor and the combination meter.
Standard voltage:
Below 1 V
| NG |
|
|
|
6. |
CHECK WIRE HARNESS (CENTER AIRBAG SENSOR ASSEMBLY - BATTERY AND BODY GROUND) |
|
(a) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds. (b) Connect the combination meter connector. (c) Turn the ignition switch to LOCK, and wait at least for 90 seconds. (d) Disconnect the center airbag sensor connector. (e) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds. (f) Turn the ignition switch to ON. (g) Measure the voltage between the body ground and IG2 on the center airbag sensor side. Standard voltage: 10 to 14 V |
|
| NG |
|
|
|
7. |

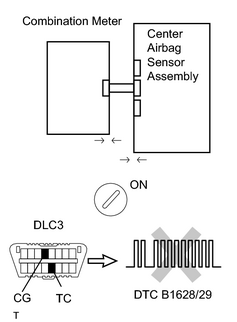

CHECK CENTER AIRBAG SENSOR ASSEMBLY |
|
(a) Connect the center airbag sensor connector. (b) Turn the ignition switch to ON, and wait at least for 10 seconds. (c)
Clear the DTC stored in memory
(d) Turn the ignition switch to LOCK, and wait at least for 10 seconds. (e) Turn the ignition switch to ON, and wait at least for 10 seconds. (f)
Check the DTC
OK: DTC B1628/29 is not output. HINT: Codes other than code B1628/29 may be output at this time, but they are not relevant to this check. |
|
| NG |
|
| OK |
|
|
|
