ECU Power Source Circuit

DESCRIPTION

This circuit supplies power to operate the sub body ECU.

BECU

Power source of sub body ECU

SIG

Power source of sub body ECU

W

Power source of rear wiper system

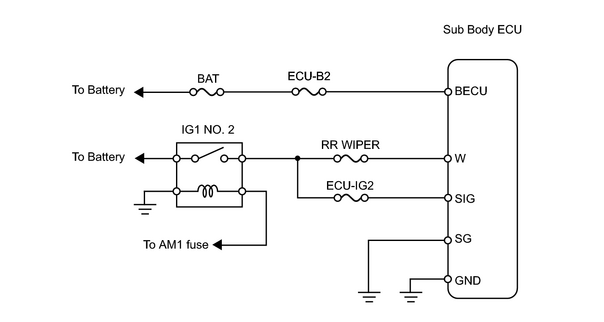

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

INSPECT FUSE (ECU-IG2, RR WIPER, ECU-B2)

(a) Remove the ECU-IG2, RR WIPER fuses from the cowl side junction block LH.

(b) Remove the ECU-B2 fuse from the cowl side unction block RH.

(c) Measure the resistance of the fuse.

Standard resistance:

Below 1 Ω

NG

REPLACE FUSE

OK

2.

CHECK WIRE HARNESS (SUB BODY ECU - BATTERY)

(a) Disconnect the S26 ECU connector.

(b) Measure the voltage of the wire harness side connector.

Standard voltage:

Tester Connection

Condition

Specified Condition

S26-3 (SIG) - Body ground

Ignition switch ON

10 to 14 V

Ignition switch OFF

Below 1 V

S26-2 (W) - Body ground

Ignition switch ON

10 to 14 V

Ignition switch OFF

Below 1 V

S26-4 (BECU) - Body ground

Always

10 to 14 V

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN PROBLEM SYMPTOMS TABLE

NG

3.

CHECK WIRE HARNESS (SUB BODY ECU - BODY GROUND)

NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN PROBLEM SYMPTOMS TABLE
