- Outer mirror retractor (Tire pressure warning antenna)
| Last Modified: 7-3-2017 | 6.8:8.0.40 | Doc ID: RM000001CF600BX |
| Model Year Start: 2007 | Model: LX470 | Prod Date Range: [08/2006 - ] |
| Title: TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: C2195/95; Multi-receiver Antenna Circuit (Test Mode DTC); 2007 MY LX470 [08/2006 - ] | ||
|
DTC |
C2195/95 |
Multi-receiver Antenna Circuit (Test Mode DTC) |
DESCRIPTION
|
DTC Code |
Detection Condition |
Trouble Area |
|---|---|---|
|
C2195/95 |
In test mode, tire pressure antenna circuit malfunction occurs |
|

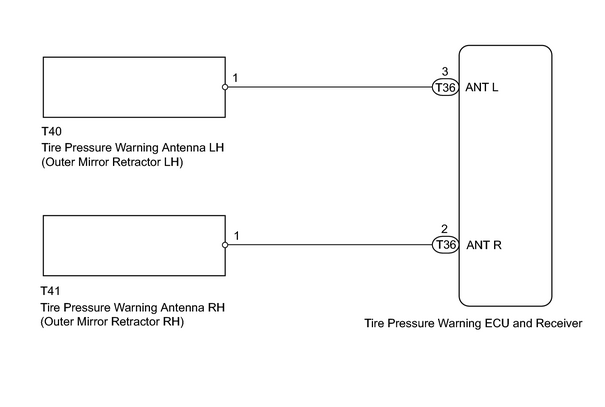

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
- When replacing the tire pressure warning ECU and receiver, read the IDs stored in the old ECU using the intelligent tester and write them down before removal.
-
It is necessary to perform initialization
![2007 MY LX470 [08/2006 - ]; TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: INITIALIZATION](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: INITIALIZATION")
after registration
of the transmitter IDs into the tire pressure warning ECU and receiver after the tire pressure warning ECU and receiver has been replaced.
PROCEDURE
|
1. |
CHECK HARNESS AND CONNECTOR (ANTENNA - ECU) |

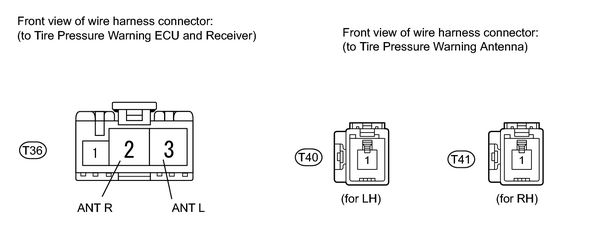

(a) Disconnect the T36 ECU connector.
(b) Disconnect the T40 and T41 antenna connectors.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
T36-3 (ANT L) - T40-1 |
Always |
Below 1 Ω |
|
T36-2 (ANT R) - T41-1 |
Always |
Below 1 Ω |
| NG |
|
|
|
2. |
REPLACE OUTER MIRROR RETRACTOR (TIRE PRESSURE WARNING ANTENNA) |
(a)
Replace tire pressure warning antenna (outer mirror retractor)
.
|
|
3. |
CHECK TEST MODE DTC |
(a)
Check test mode DTC
.
OK:
DTC is not output.
| NG |
|
| OK |
|
|
|
