Title: SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: TC and CG Terminal Circuit; 2007 MY LX470 [08/2006 - ] |
|
TC and CG Terminal Circuit
|
DESCRIPTION
Connecting terminals TC and CG of the DLC3 causes the ECU to display the DTC by flashing the height control OFF indicator light.

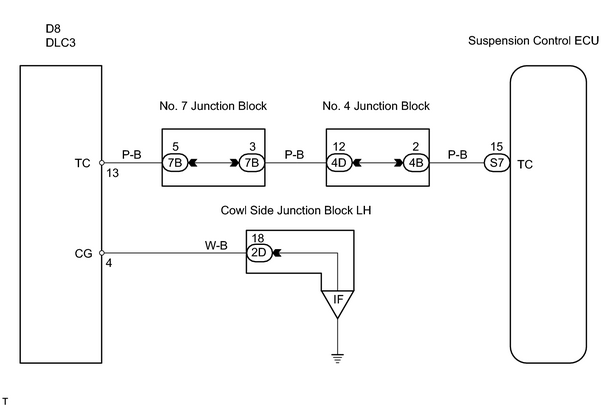

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1.
|
CHECK DLC3 (TC VOLTAGE)
|
|
(a) Turn the ignition switch ON.
|
|
(b) Measure the voltage between terminals 13 (TC) and 4 (CG) of the DLC3.
Standard voltage:
9 to 14 V
| OK |
|
REPLACE SUSPENSION CONTROL ECU
|
| NG |
|
|
|
2.
|
CHECK WIRE HARNESS (SUSPENSION CONTROL ECU - DLC3 AND BODY GROUND)
|
| NG |
|
REPAIR OR REPLACE HARNESS AND CONNECTOR
|
| OK |
|
REPLACE SUSPENSION CONTROL ECU
|
|
