ON-VEHICLE INSPECTION

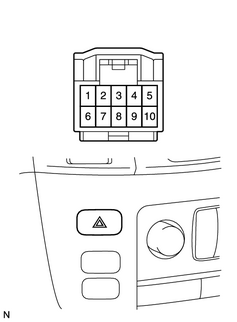

1. INSPECT HAZARD WARNING SWITCH ASSEMBLY

(a) Measure the continuity of the switch.

OK:

Tester Connection

Switch Position

Specified Condition

3 - 5

Pushed

Continuity

Not Pushed

No continuity
  • If the result is not as specified, replace the switch assembly.
