| Last Modified: 7-3-2017 | 6.8:8.0.40 | Doc ID: RM000001G8K001X |
| Model Year Start: 2007 | Model: LX470 | Prod Date Range: [08/2006 - ] |
| Title: STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: B2602; Key Unlock Warning Switch Circuit Malfunction; 2007 MY LX470 [08/2006 - ] | ||
|
DTC |
B2602 |
Key Unlock Warning Switch Circuit Malfunction |
DESCRIPTION
Different signals (ON or OFF) are sent from the body ECU to the tilt and telescopic ECU through the communication bus when the ignition key is inserted into the key cylinder. The tilt and telescopic ECU uses this signal to operate the auto away function or auto return function.
|
DTC No. |
Detection Item |
Trouble Area |
|---|---|---|
|
B2602 |
The signal (OFF) is sent to the tilt and telescopic ECU when the ignition switch is turned to ACC, ON or START position. |
Key unlock warning switch |

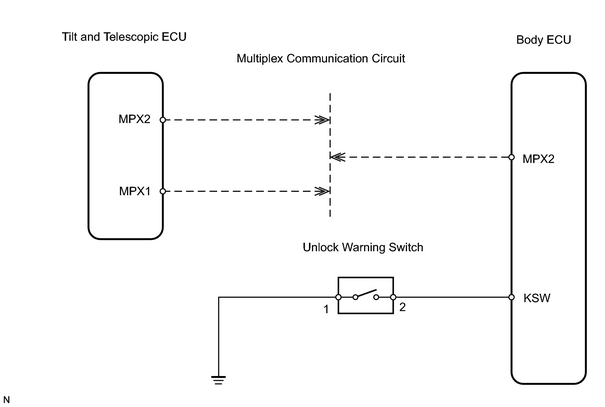

WIRING DIAGRAM
INSPECTION PROCEDURE
Check the key unlock warning switch
![2007 MY LX470 [08/2006 - ]; ENGINE IMMOBILISER: UNLOCK WARNING SWITCH: INSPECTION](../../../../stylegraphics/info.gif "2007 MY LX470 [08/2006 - ]; ENGINE IMMOBILISER: UNLOCK WARNING SWITCH: INSPECTION")
.
|
|
