Last Modified: 7-3-2017 6.8:8.0.40 Doc ID: RM0000028DJ001X
Model Year Start: 2007 Model: LX470 Prod Date Range: [08/2006 -           ]
Title: SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION; 2007 MY LX470 [08/2006 -        ]

INSPECTION

1. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

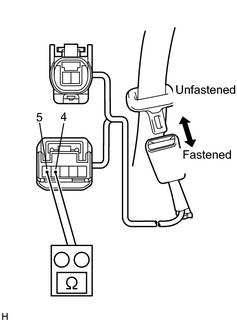

(a) Measure the resistance of the buckle switch.

Standard resistance:

Tester Connection

Condition

Specified Condition

4 - 5

Seat belt is unfastened

Below 1 Ω

4 - 5

Seat belt is fastened

1 MΩ or higher

If the result is not as specified, replace the belt assembly.
