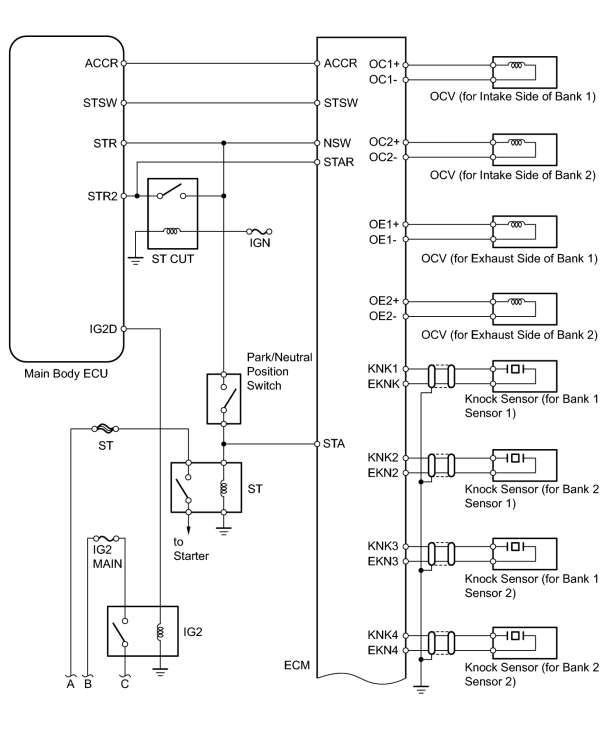

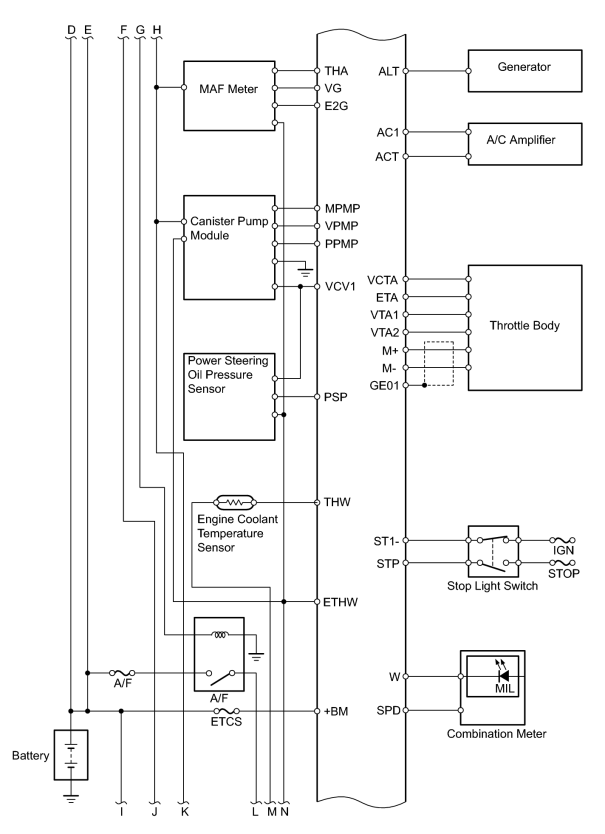

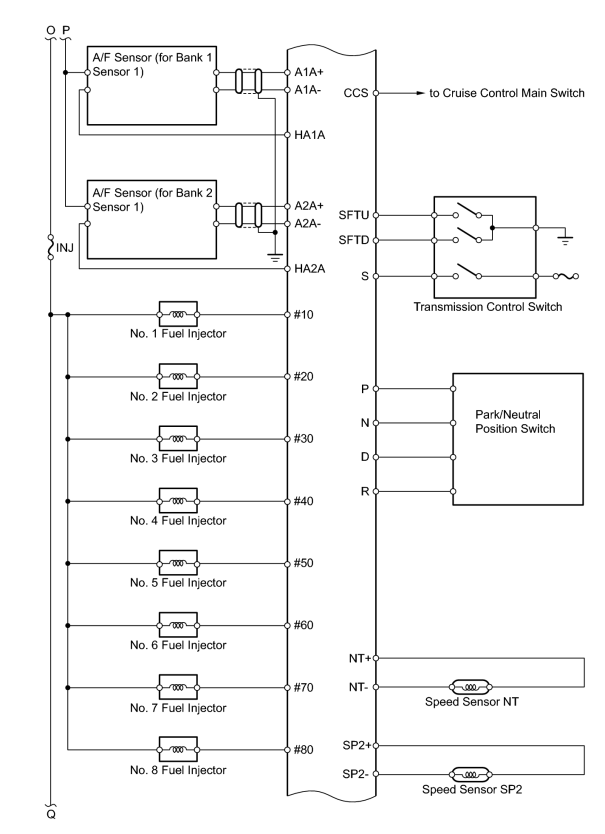

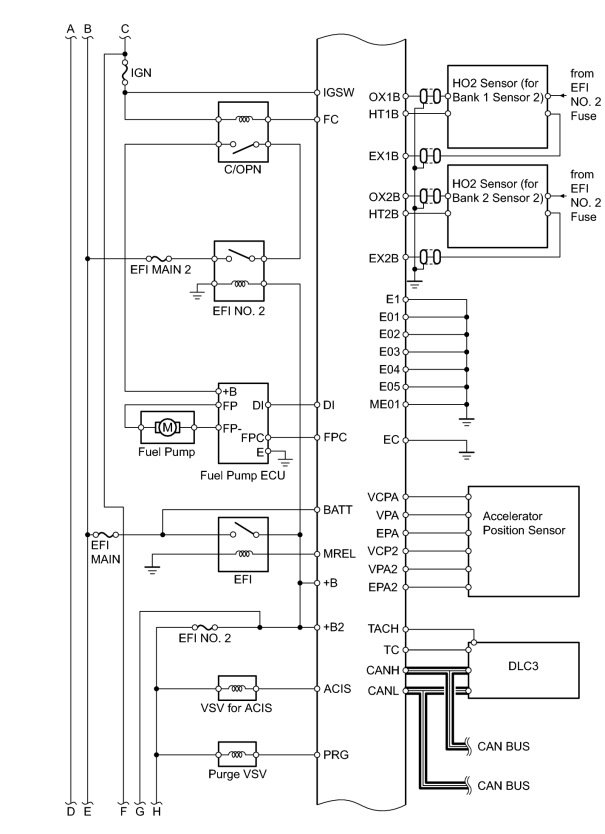

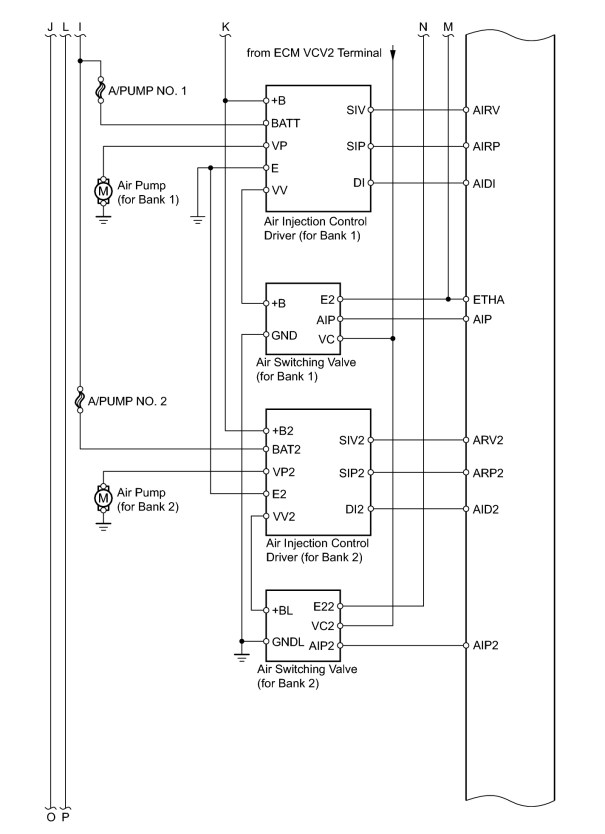

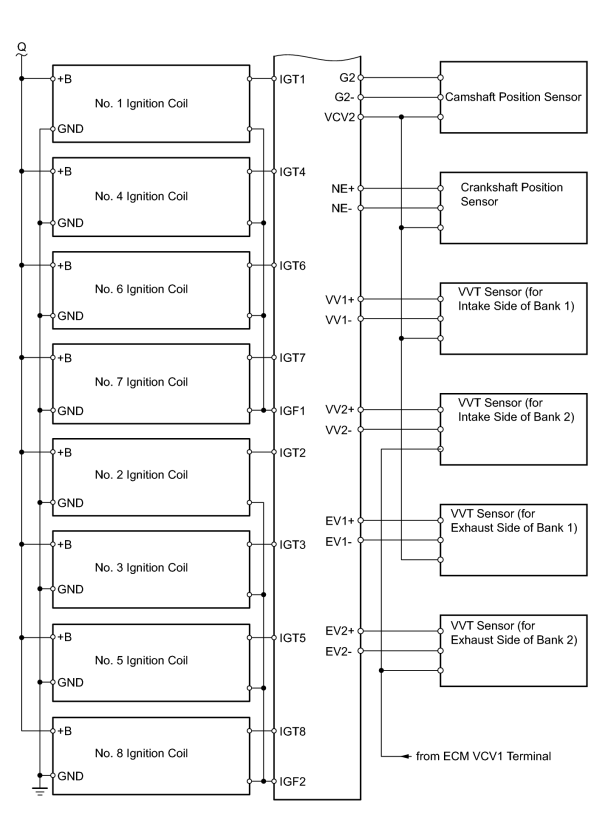

3UR-FE ENGINE CONTROL: SFI SYSTEM: SYSTEM DIAGRAM (2008 LX570)

Home › Engine/Hybrid System › Engine Control › 3UR-FE ENGINE CONTROL: SFI SYSTEM

Last Modified: 11-27-2007		1.6 U
Service Category: Engine/Hybrid System	Section: Engine Control
Model Year: 2008	Model: LX570	Doc ID: RM000000PDB03WX
Title: 3UR-FE ENGINE CONTROL: SFI SYSTEM: SYSTEM DIAGRAM (2008 LX570)
