- Open in Heated Oxygen (HO2) sensor heater circuit
- HO2 sensor heater (for Sensor 2)
- Integration relay
- ECM
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Engine/Hybrid System | Section: Engine Control | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000PFA05VX |
| Title: 3UR-FE ENGINE CONTROL: SFI SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
P0037 |
Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 2) |
|
DTC |
P0038 |
Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 2) |
|
DTC |
P0057 |
Oxygen Sensor Heater Control Circuit Low (Bank 2 Sensor 2) |
|
DTC |
P0058 |
Oxygen Sensor Heater Control Circuit High (Bank 2 Sensor 2) |
|
DTC |
P0141 |
Oxygen Sensor Heater Circuit Malfunction (Bank 1 Sensor 2) |
|
DTC |
P0161 |
Oxygen Sensor Heater Circuit Malfunction (Bank 2 Sensor 2) |
DESCRIPTION
Refer to DTC P0136
.
HINT:
- When any of these DTCs is stored, the ECM enters fail-safe mode. The ECM turns off the Heated Oxygen (HO2) Sensor heater in fail-safe mode. Fail-safe mode continues until the engine switch is turned off.
-

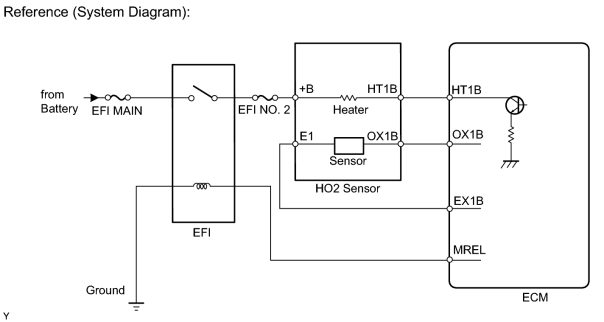

The ECM provides a pulse width modulated control circuit to adjust the current through the heater. The HO2 sensor heater circuit uses a relay on the +B side of the circuit.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
P0037 P0057 |
The Heated Oxygen (HO2) sensor heater current is below 0.3 A (1 trip detection logic). |
|
|
P0038 P0058 |
The Heated Oxygen (HO2) sensor heater current is higher than 2 A (1 trip detection logic). |
|
|
P0141 P0161 |
The Cumulative heater resistance correction value exceeds the threshold (2 trip detection logic). |
|
HINT:
- Bank 1 refers to the bank that includes the No. 1 cylinder.
- Bank 2 refers to the bank that does not include the No. 1 cylinder.
- Sensor 1 refers to the sensor closest to the engine assembly.
- Sensor 2 refers to the sensor farthest away from the engine assembly.
MONITOR DESCRIPTION
The sensing portion of the Heated Oxygen (HO2) sensor has a zirconia element which is used to detect the oxygen concentration in the exhaust gas. If the zirconia element is at the appropriate temperature, and the difference between the oxygen concentrations surrounding the inside and outside surfaces of the sensor is large, the zirconia element generates voltage signals. In order to increase the oxygen concentration detecting capacity of the zirconia element, the ECM supplements the heat from the exhaust with heat from a heating element inside the sensor.
Heated oxygen sensor heater range check (P0037, P0038, P0057 and P0058):
The ECM monitors the current applied to the O2 sensor heater to check the heater for malfunctions. If the current is below the threshold value, the ECM determines that there is an open circuit in the heater. If the current is higher than the threshold value, the ECM determines that there is a short circuit in the heater.
The ECM constantly monitors the current applied to the heater. If the ECM detects an open or short circuit, the ECM turns the MIL on and stores a DTC.
If a malfunction is detected, the ECM cuts off the current applied to the heater.
Example:
The ECM stores DTC P0038 or P0058 when the current in the HO2 sensor heater is higher than 2 A. Conversely, when the heater current is below 0.3 A, DTC P0037 or P0057 is stored.
Heated oxygen sensor heater performance (P0141 and P0161):
After the accumulated heater ON time exceeds 100 seconds, the ECM calculates the heater resistance using the battery voltage and the current applied to the heater.
If the resistance is higher than the threshold value, the ECM determines that there is a malfunction in the HO2 sensor heater and stores DTC P0141 or P0161.
MONITOR STRATEGY
|
Related DTCs |
P0037: Heated oxygen sensor heater (for Bank 1) range check (Low electrical current) P0038: Heated oxygen sensor heater (for Bank 1) range check (High electrical current) P0057: Heated oxygen sensor heater (for Bank 2) range check (Low electrical current) P0058: Heated oxygen sensor heater (for Bank 2) range check (High electrical current) P0141: Heated oxygen sensor heater performance (for Bank 1) P0161: Heated oxygen sensor heater performance (for Bank 2) |
|
Required Sensors/Components (Main) |
Heated oxygen sensor heater |
|
Required Sensors/Components (Related) |
- |
|
Frequency of Operation |
Continuous: P0037, P0038, P0057 and P0058 Once per driving cycle: P0141 and P0161 |
|
Duration |
0.5 seconds: P0037 and P0057 2 seconds: P0038 and P0058 10 seconds: P0141 and P0161 |
|
MIL Operation |
Immediate: P0037, P0038, P0057 and P0058 2 driving cycles: P0141 and P0161 |
|
Sequence of Operation |
None |
TYPICAL ENABLING CONDITIONS
All:
|
Monitor runs whenever following DTCs not stored |
None |
P0037 and P0057:
|
Battery voltage |
10.5 to 20 V |
P0038 and P0058 (Condition A):
|
Battery voltage |
10.5 V or higher |
|
Engine |
Running |
|
Starter |
OFF |
P0038 and P0058 (Condition B):
|
Battery voltage |
10.5 to 20 V |
P0141 or P0161 (Condition A):
|
All of following conditions met: |
- |
|
Battery voltage |
10.5 V or higher |
|
Fuel cut |
OFF |
|
Time after fuel cut ON to OFF |
30 seconds or more |
|
Accumulated heater ON time |
100 seconds or more |
P0141 or P0161 (Condition B):
|
Duration that rear heated oxygen sensor impedance is less than 15 kΩ |
2 seconds or more |
TYPICAL MALFUNCTION THRESHOLDS
P0037 and P0057:
|
Heater current |
Below 0.3 A |
P0038 and P0058 (Criteria A):
|
Learned heater OFF current |
Higher than 2 A |
P0038 and P0058 (Criteria B):
|
Hybrid IC high current limiter port |
Fail |
P0141 or P0161:
|
Accumulated heater resistance |
Varies with sensor element temperature (Example: Higher than 23 Ω) |
COMPONENT OPERATING RANGE
|
Heated Oxygen (HO2) sensor heater current |
0.4 to 1 A (when engine idles, HO2 sensor warmed up and battery voltage 11 to 14 V) |
WIRING DIAGRAM
Refer to DTC P0136
.
CONFIRMATION DRIVING PATTERN
These DTCs are stored when the engine idles for 110 seconds or more.
INSPECTION PROCEDURE
HINT:
- Sensor 2 refers to the sensor mounted behind the Three-Way Catalytic Converter (TWC) and located far from the engine assembly.
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
|
1. |

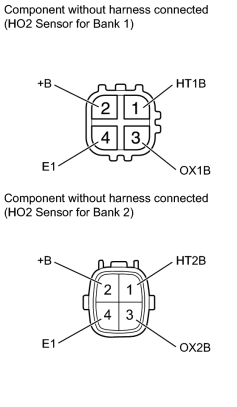

INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE) |
(a) Disconnect the C17 or C18 heated oxygen (HO2) sensor connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (HT1B) - 2 (+B) |
20°C (68°F) |
11 to 16 Ω |
|
1 (HT1B) - 4 (E1) |
Always |
10 kΩ or higher |
|
1 (HT2B) - 2 (+B) |
20°C (68°F) |
11 to 16 Ω |
|
1 (HT2B) - 4 (E1) |
Always |
10 kΩ or higher |
|
|
2. |

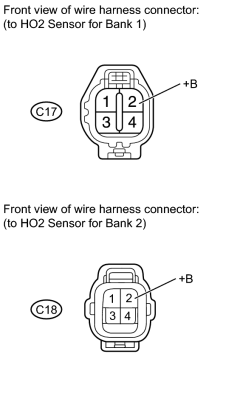

CHECK TERMINAL VOLTAGE (+B OF HO2 SENSOR) |
(a) Disconnect the C17 or C18 HO2 sensor connector.
(b) Turn the engine switch on (IG).
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
C17-2 (+B) - Body ground |
Engine switch on (IG) |
11 to 14 V |
|
C18-2 (+B) - Body ground |
Engine switch on (IG) |
11 to 14 V |
Result
|
Result |
Proceed to |
|---|---|
|
NG |
A |
|
OK |
B |
|
|
3. |
INSPECT INTEGRATION RELAY (EFI) |
(a) Remove the integration relay from the engine room relay block.
(b) Inspect the EFI MAIN fuse.
(1) Remove the EFI MAIN fuse from the integration relay.
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
EFI MAIN fuse |
Always |
Below 1 Ω |
(3) Reinstall the EFI MAIN fuse.
(c) Inspect the EFI relay.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1C-1 - 1B-4 |
No battery voltage applied to terminals 1B-2 and 1B-3 |
10 kΩ or higher |
|
Battery voltage applied to terminals 1B-2 and 1B-3 |
Below 1 Ω |
|
|
4. |

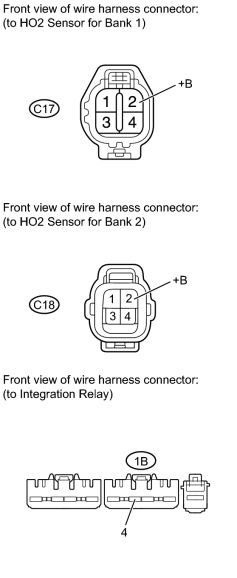

CHECK HARNESS AND CONNECTOR (HO2 SENSOR - INTEGRATION RELAY) |
(a) Check the EFI NO. 2 fuse.
(1) Remove the EFI NO. 2 fuse from the engine room relay block.
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
EFI NO. 2 fuse |
Always |
Below 1 Ω |
(3) Reinstall the EFI NO. 2 fuse.
(b) Disconnect the C17 or C18 HO2 sensor connector.
(c) Remove the integration relay from the engine room relay block.
(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
C17-2 (+B) - 1B-4 |
Always |
Below 1 Ω |
|
C18-2 (+B) - 1B-4 |
Always |
Below 1 Ω |
|
C17-2 (+B) or 1B-4 - Body ground |
Always |
10 kΩ or higher |
|
C18-2 (+B) or 1B-4 - Body ground |
Always |
10 kΩ or higher |
|
|
9. |

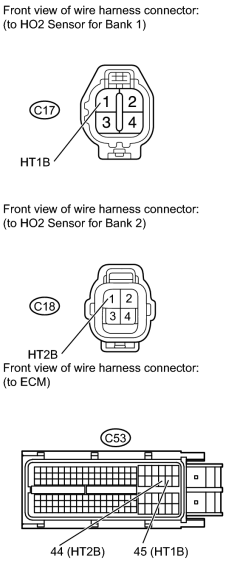

CHECK HARNESS AND CONNECTOR (HO2 SENSOR - ECM) |
(a) Disconnect the C17 or C18 HO2 sensor connector.
(b) Disconnect the C53 ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
C17-1 (HT1B) - C53-45 (HT1B) |
Always |
Below 1 Ω |
|
C18-1 (HT2B) - C53-44 (HT2B) |
Always |
Below 1 Ω |
|
C17-1 (HT1B) or C53-45 (HT1B) - Body ground |
Always |
10 kΩ or higher |
|
C18-1 (HT2B) or C53-44 (HT2B) - Body ground |
Always |
10 kΩ or higher |
|
|
10. |
CHECK WHETHER DTC OUTPUT RECURS |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear DTCs
.
(e) Start the engine.
(f) Allow the engine to idle for 2 minutes or more.
(g) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(h) Read DTCs.
Result
|
Result |
Proceed to |
|---|---|
|
No DTC is output |
A |
|
P0037, P0038, P0057, P0058, P0141 and/or P0161 are output |
B |
|
|
|
