| Last Modified: 11-27-2007 | 1.6 U | |
| Service Category: Engine/Hybrid System | Section: Cruise Control | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000PM202TX |
| Title: CRUISE CONTROL: CRUISE CONTROL SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

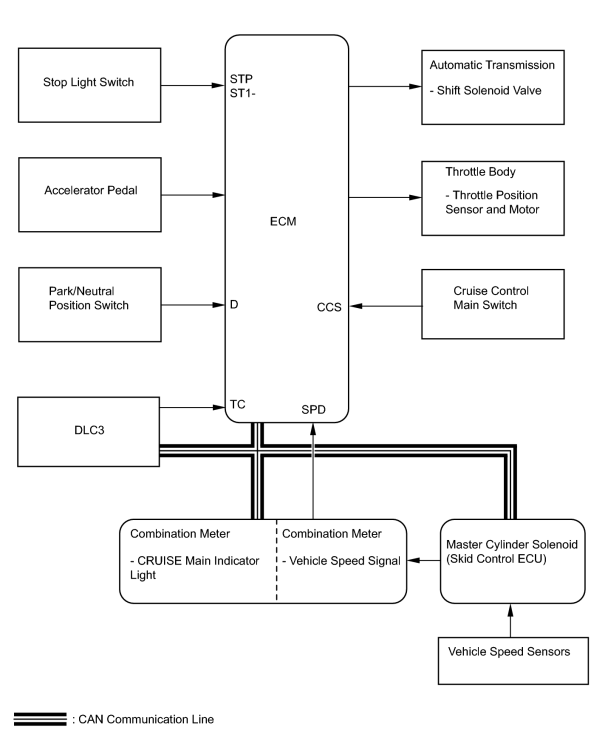

SYSTEM DIAGRAM
Communication Table
|
Transmitter |
Receiver |
Signal |
Communication Line |
|---|---|---|---|
|
ECM |
Combination Meter |
CRUISE main indicator operation signal |
CAN |
|
|
